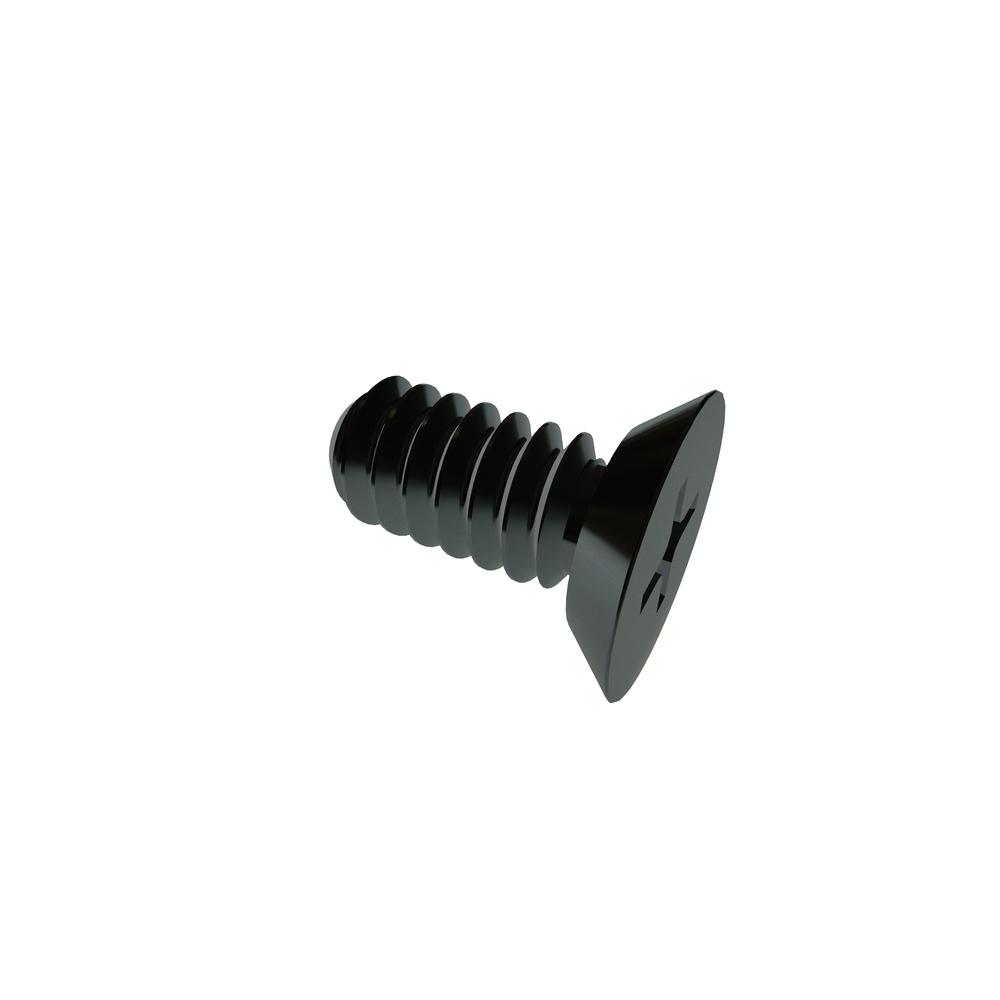

4C25PFUZR
4-40 X 1/4 PHIL FLAT U/C STL ZN CR3
Alternate Codes: 001209, 12-0029-003, 4C25PFUZt
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.098 | $0.060 | $0.043 | $0.033 | $0.031 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Flat Undercut |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.110in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.071in |
| Brand | VARIED |
| Length | 0.25in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
| Head Height (Max.) | 0.047in |
| Head Height (Min.) | 0.038in |
