4C25PPEZR/P
4-40 X 1/4 PHIL PAN EXT SEMS PATCH STL
Alternate Codes: N/A

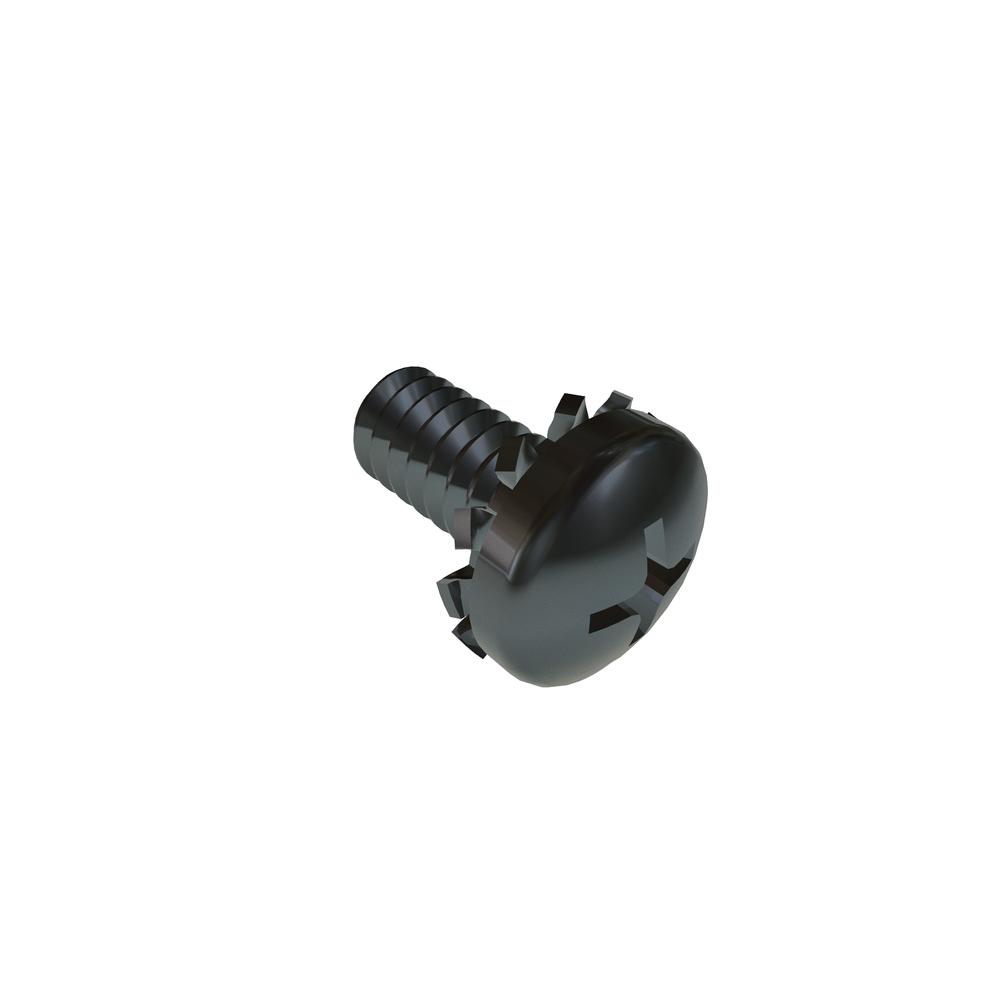

4-40 X 1/4 Phillips Pan Head External SEMS PATCH Steel
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.018in |
| Lock Washer Outside Diameter (Min.) | 0.220in |
| Lock Washer Outside Diameter (Max.) | 0.230in |
| Washer Type | External Tooth Lock Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 0.053in |
| Penetration Depth (Max.) | 0.071in |
| Recess Diameter | 0.115in |
| Head Radius (Min.) | 0.010in |
| Self Locking Type | Patchlock |
| Brand | VARIED |
| Length | 1/4in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Lock Washer Thickness (Min.) | 0.012in |
