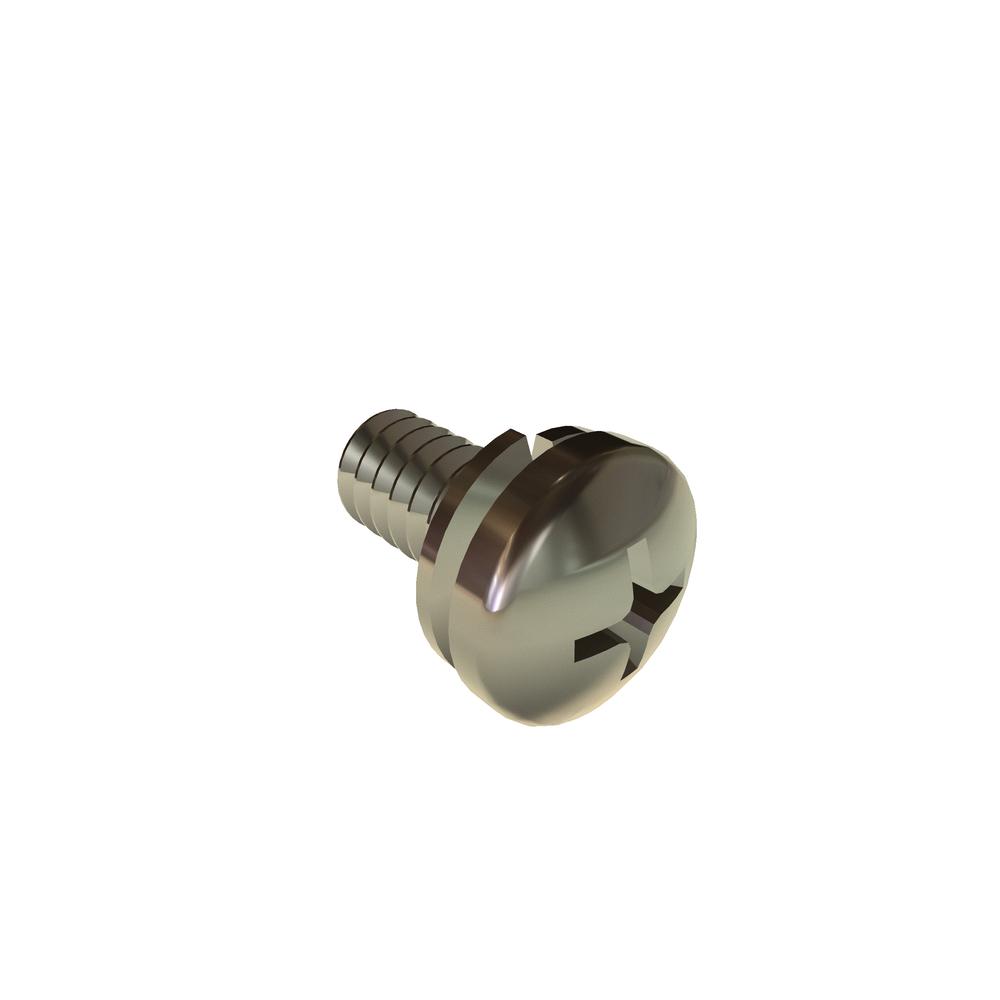

4C25PPLS
4-40 X 1/4 PHIL PAN SPLIT L/W SEMS SST
Alternate Codes: 96909A406
RoHS
Pricing per Unit
| 1-249 pcs |
|---|
| $0.222 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.047in |
| Lock Washer Outside Diameter (Min.) | 0.195in |
| Lock Washer Outside Diameter (Max.) | 0.280in |
| Washer Type | Split Lock Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 0.053in |
| Penetration Depth (Max.) | 0.071in |
| Recess Diameter | 0.115in |
| Head Radius (Min.) | 0.010in |
| Brand | VARIED |
| Additional Industry Cross Reference | 96909A406 |
| Length | 1/4in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Lock Washer Thickness (Min.) | 0.031in |
| Lock Washer Inside Diameter (Min.) | 0.101in |
| Lock Washer Inside Diameter (Max.) | 0.105in |
