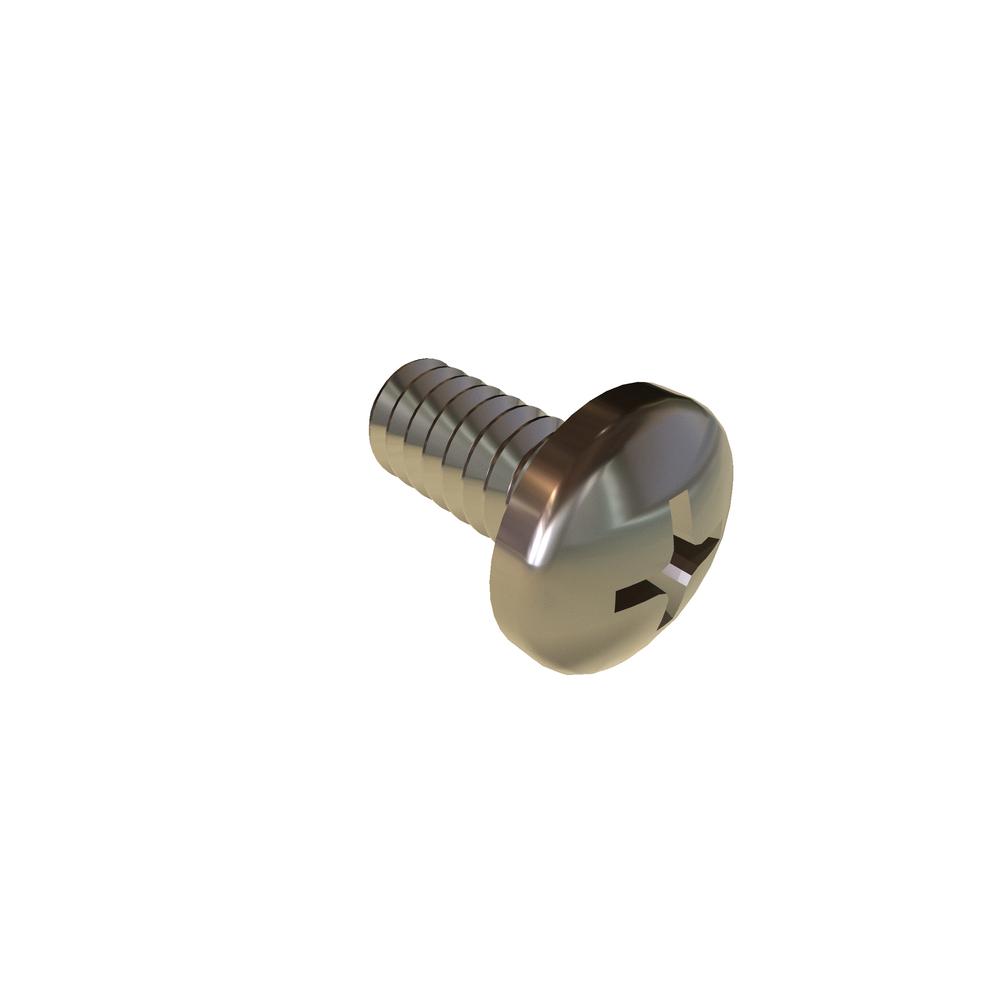

Image for reference purposes only. Actual product may vary.
4C25PPMS/SEEL
4-40 X 1/4 PH PAN SEELSKREW SST RoHS
Alternate Codes: 02991
SILICONE O-RING
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 0.112in |
| Thread Size | 4-40 |
| Finish | Plain |
| Recess Depth (Max.) | 0.071in |
| Recess Depth (Min.) | 0.053in |
| Recess Diameter | 0.115in |
| O-Ring Thickness | 0.032in |
| O-Ring Diameter | 0.176in |
| Brand | APM HEXSEAL |
| Drive Type | Phillips |
| Head Type | Pan |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Drive Size | 1 |
| Head Radius (Min.) | 0.010in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
