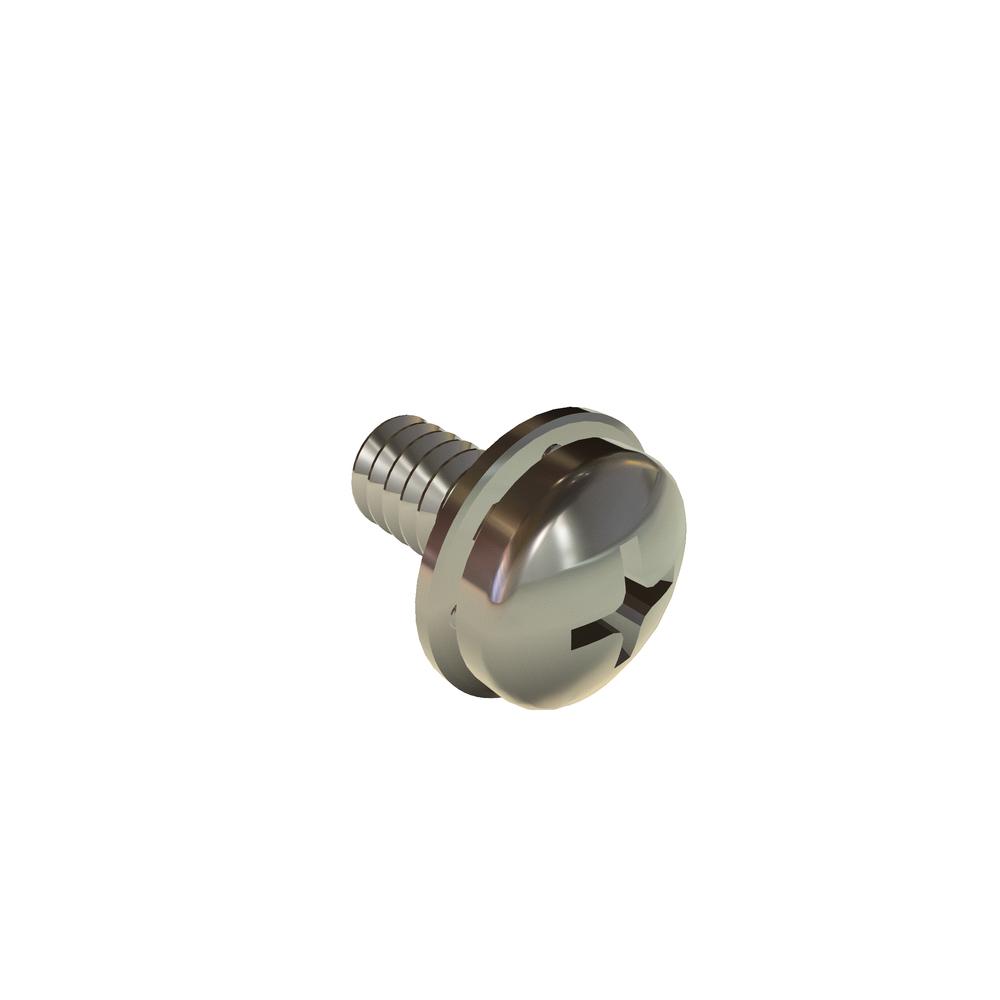

4C25PPQS
4-40 X 1/4 PH PAN SQ CONE SEMS SST RoHS
Alternate Codes: 91241A412
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.312 | $0.164 | $0.130 | $0.120 | $0.101 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Height (Min.) | 0.021in |
| Lock Washer Height (Max.) | 0.039in |
| Lock Washer Outside Diameter (Min.) | 0.244in |
| Lock Washer Outside Diameter (Max.) | 0.250in |
| Washer Type | Square Cone Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 0.053in |
| Penetration Depth (Max.) | 0.071in |
| Recess Diameter | 0.115in |
| Head Radius (Min.) | 0.010in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91241A412 |
| Length | 1/4in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Lock Washer Thickness (Min.) | 0.015in |
