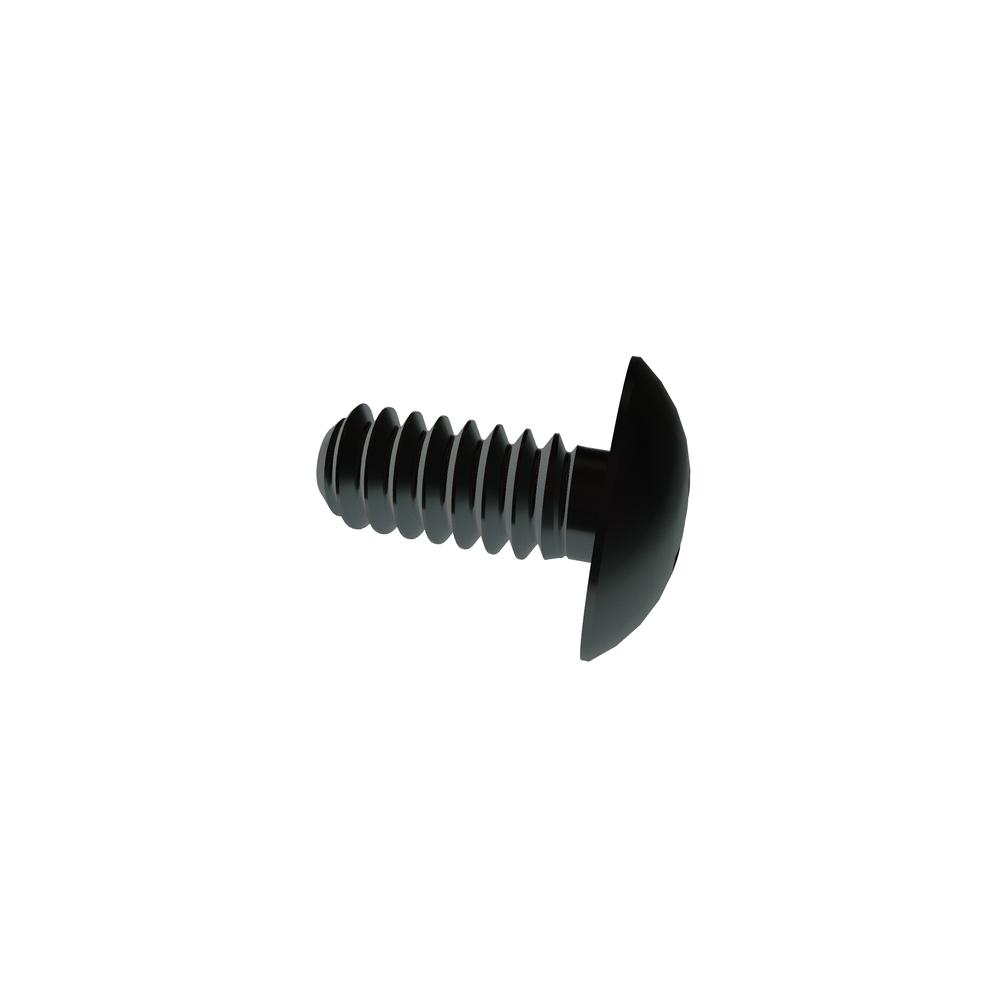

Image for reference purposes only. Actual product may vary.
4C25PTMZR
4-40 X 1/4 PHIL TRUSS STL ZN CR3
Alternate Codes: N/A
4-40 X 1/4 Phillips Truss Head Steel Zinc Plated RoHS3
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.117 | $0.070 | $0.058 | $0.048 | $0.042 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 0.25in |
| Thread Size | 4-40 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Truss |
| Drive Size | 1 |
| Recess Diameter | 0.105in |
| Head Radius (Min.) | 0.169in |
| Recess Depth (Min.) | 0.044in |
| Recess Depth (Max.) | 0.062in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.257in |
| Head Diameter (Min.) | 0.241in |
| Head Height (Max.) | 0.069in |
| Head Height (Min.) | 0.059in |
