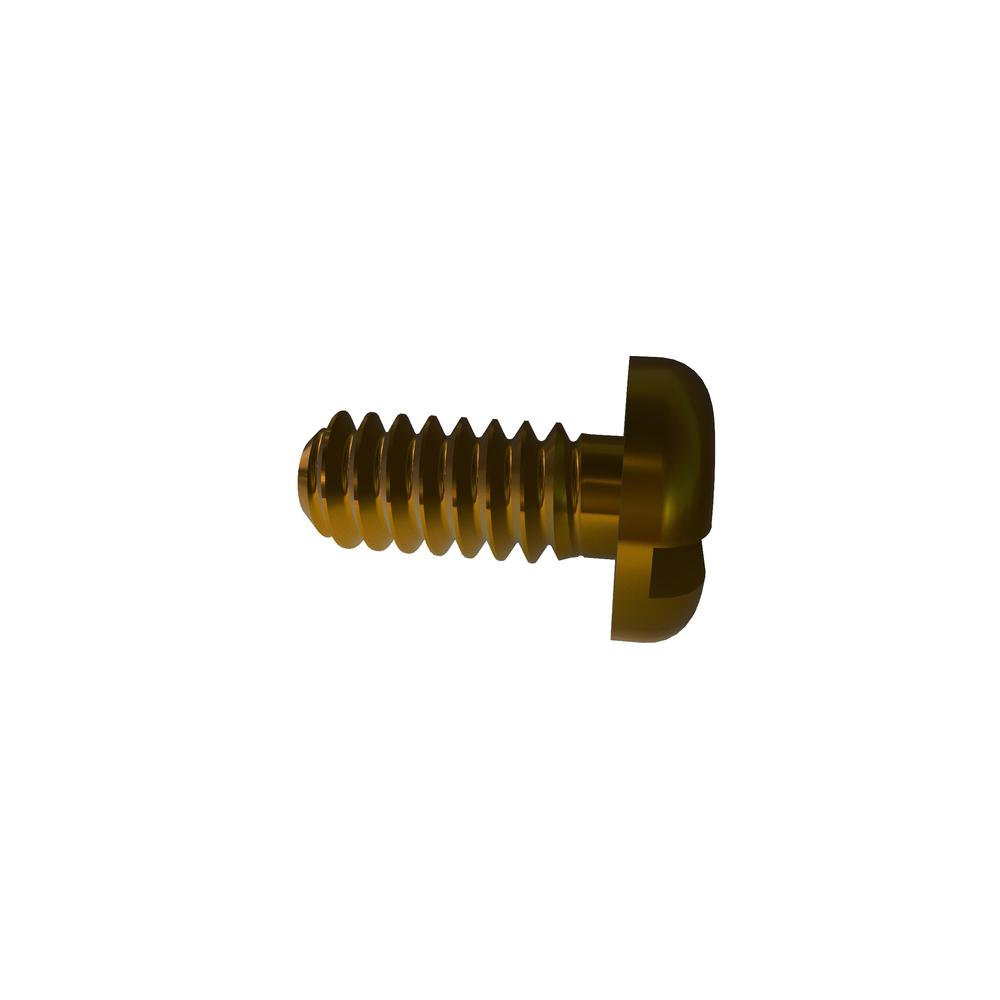

Image for reference purposes only. Actual product may vary.
4C25SPMBP
4-40 X 1/4 SLOT PAN HD BR PLN
Alternate Codes: N/A
4-40 X 1/4 Slot Pan Head Head Brass Plain RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.260 | $0.137 | $0.108 | $0.100 | $0.084 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 0.25in |
| Thread Size | 4-40 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Slotted |
| Material | Brass |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Head Radius (Min.) | 0.042in |
| Slot Depth (Min.) | 0.030in |
| Slot Depth (Max.) | 0.040in |
| Slot Width (Min.) | 0.031in |
| Slot Width (Max.) | 0.039in |
| Additional Industry Cross Reference | 92446A106 |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.068in |
| Head Height (Min.) | 0.058in |
