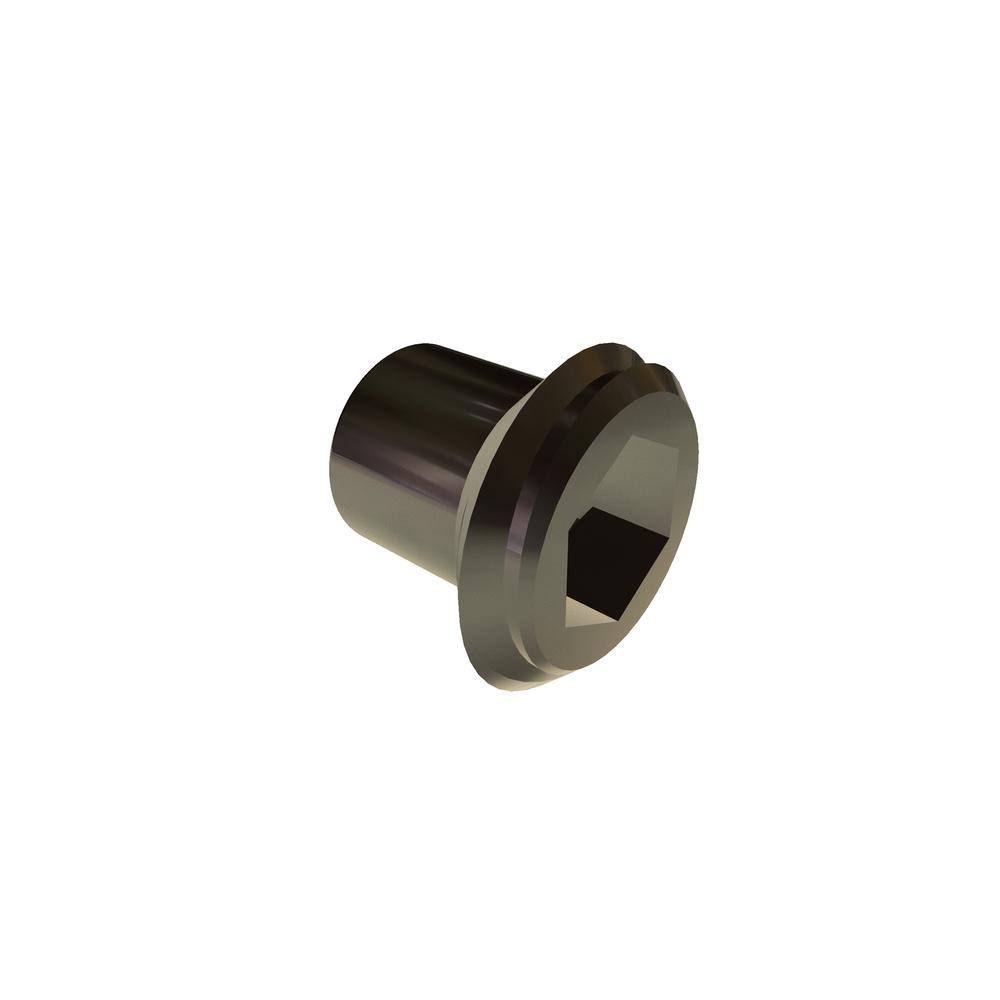

4-40 X 1/4 SOC SET FULL DOG PT SST RoHS
4C25SSDS
| Item Id | 4C25SSDS |
| Description | 4-40 X 1/4 SOC SET FULL DOG PT SST RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Finish | Plain |
| Head Type | Headless |
| Hex Socket Size | 0.050in |
| Key Engagement (Min.) | 0.070in |
| Length | 1/4in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3 (Q is derived from ASME B18.6.2) |
| Point Diameter (Max.) | 0.075in |
| Point Diameter (Min.) | 0.070in |
| Point Length (Max.) | 0.060in |
| Point Length (Min.) | 0.052in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Thread Size | Apr-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
