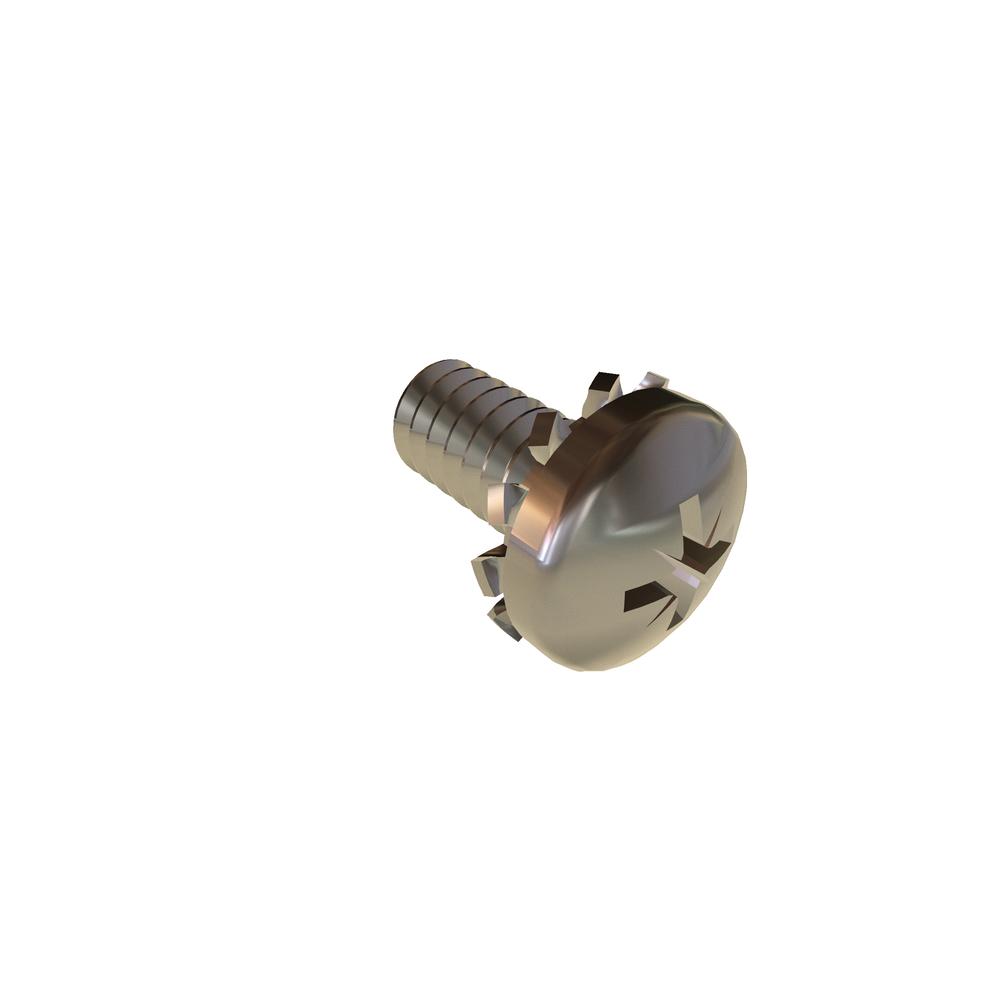

4C25ZPES
4-40 X 1/4 POZI PAN EXT SEMS SST RoHS
Alternate Codes: N/A
4-40 X 1/4 POZI Pan Head External SEMS Stainless Steel RoHS3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Drive Type | Pozi |
| Lock Washer Thickness (Max.) | 0.018in |
| Lock Washer Outside Diameter (Min.) | 0.220in |
| Lock Washer Outside Diameter (Max.) | 0.230in |
| Washer Type | External Tooth Lock Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 0.056in |
| Penetration Depth (Max.) | 0.072in |
| Recess Diameter | 0.115in |
| Head Radius (Min.) | 0.010in |
| Brand | VARIED |
| Length | 1/4in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Lock Washer Thickness (Min.) | 0.012in |
