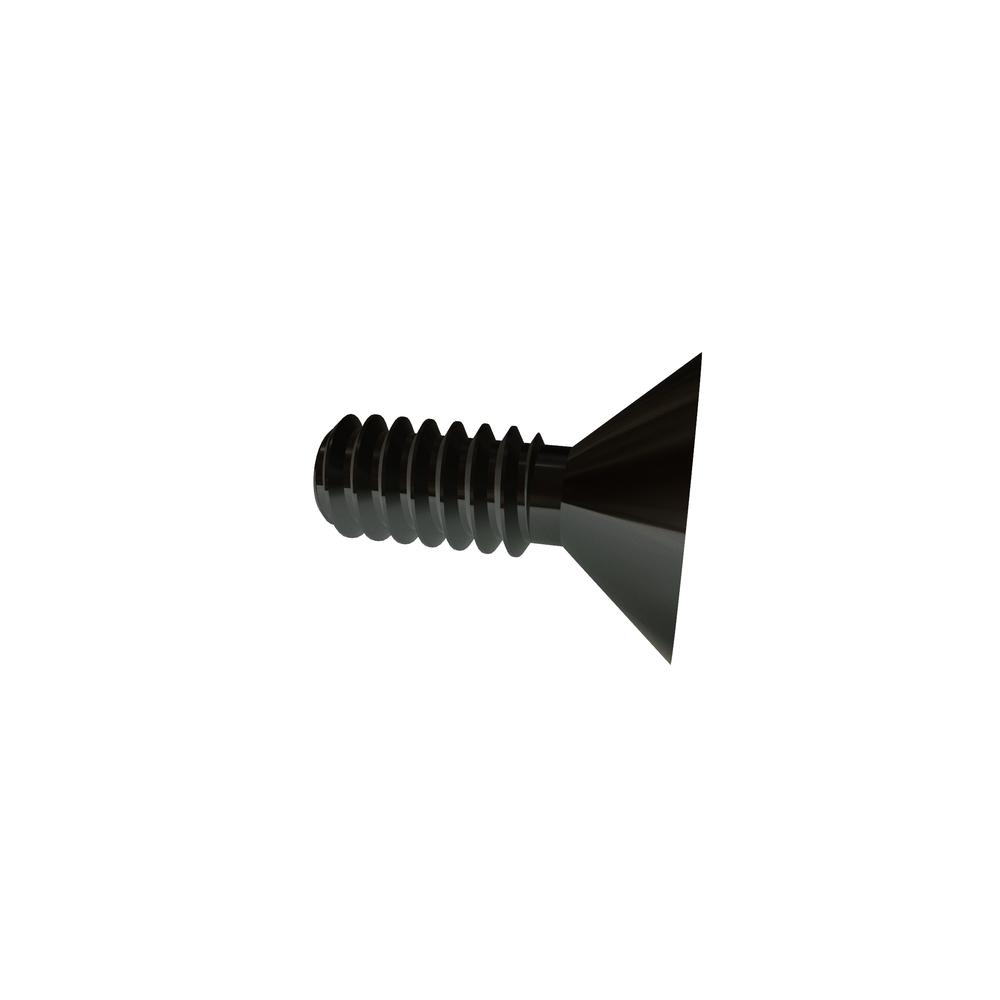

Image for reference purposes only. Actual product may vary.
4C31FHXAR
4-40 X 5/16 FLAT TORX ALLOY ZINC RoHS
Alternate Codes: 90920A271
4-40 X 5/16 Flat Head Torx ALLOY ZINC Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 0.112in |
| Length | 5/16in |
| Thread Size | 4-40 |
| Finish | Zinc Clear |
| Material | Alloy Steel |
| Head Type | Flat |
| Drive Type | Torx Socket |
| Brand | VARIED |
| RoHS | Compliant |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Drive Size | T8 |
| Key Engagement | 0.055in |
| Body Diameter (Min.) | 0.108in |
| Torx Socket Size | 0.090in |
| Additional Industry Cross Reference | 90920A271 |
| Body Diameter (Max.) | 0.112in |
| Head Diameter (Max.) | 0.255in |
| Head Diameter (Min.) | 0.218in |
| Head Height (Min.) | 0.083in |
