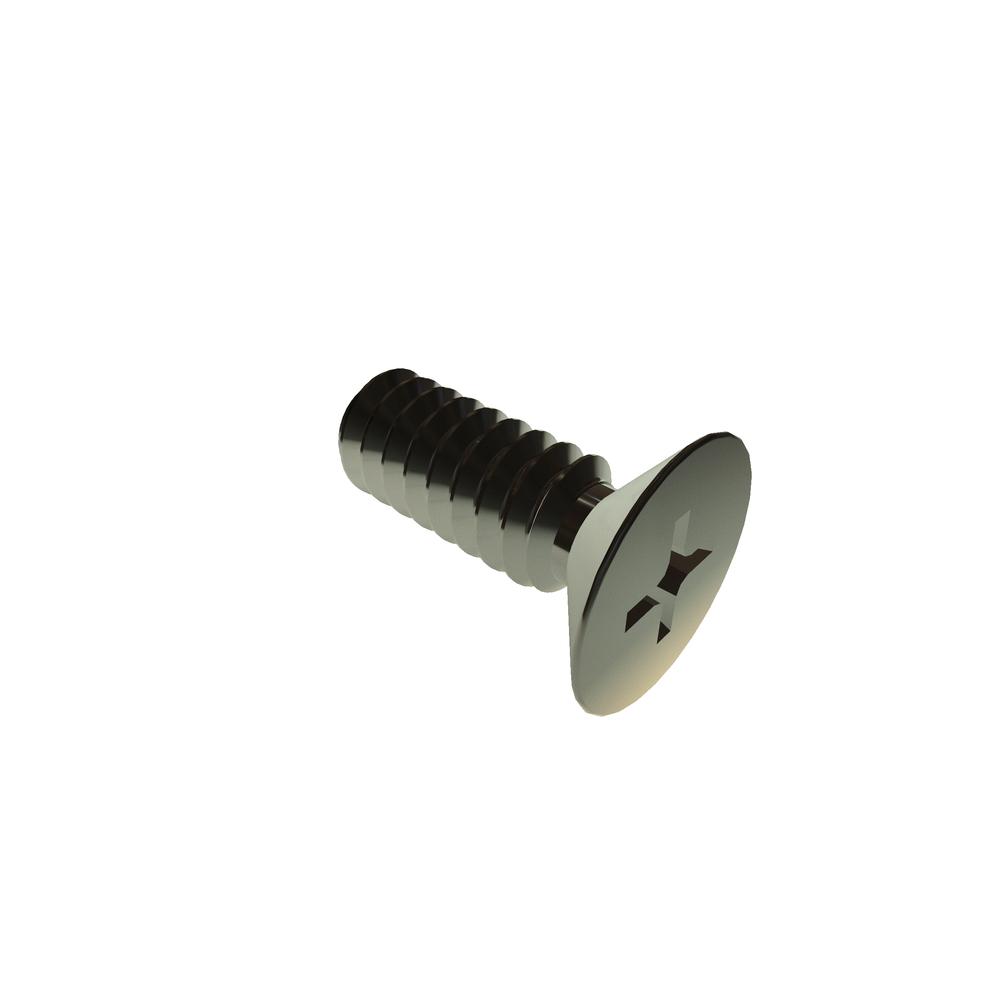

Image for reference purposes only. Actual product may vary.
4C31PFHSB/P
4-40 X 5/16 PHIL FLAT 100 DEG PATCHLK
Alternate Codes: N/A
4-40 X 5/16 Phillips Flat Head 100 Degree Patch Black Oxide RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 0.112in |
| Length | 5/16in |
| Thread Size | 4-40 |
| Finish | Black Oxide |
| Material | Stainless Steel |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Flat 100 Degree |
| Drive Size | 1 |
| Recess Diameter | 0.110in |
| Head Height | 0.049in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.071in |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.188in |
