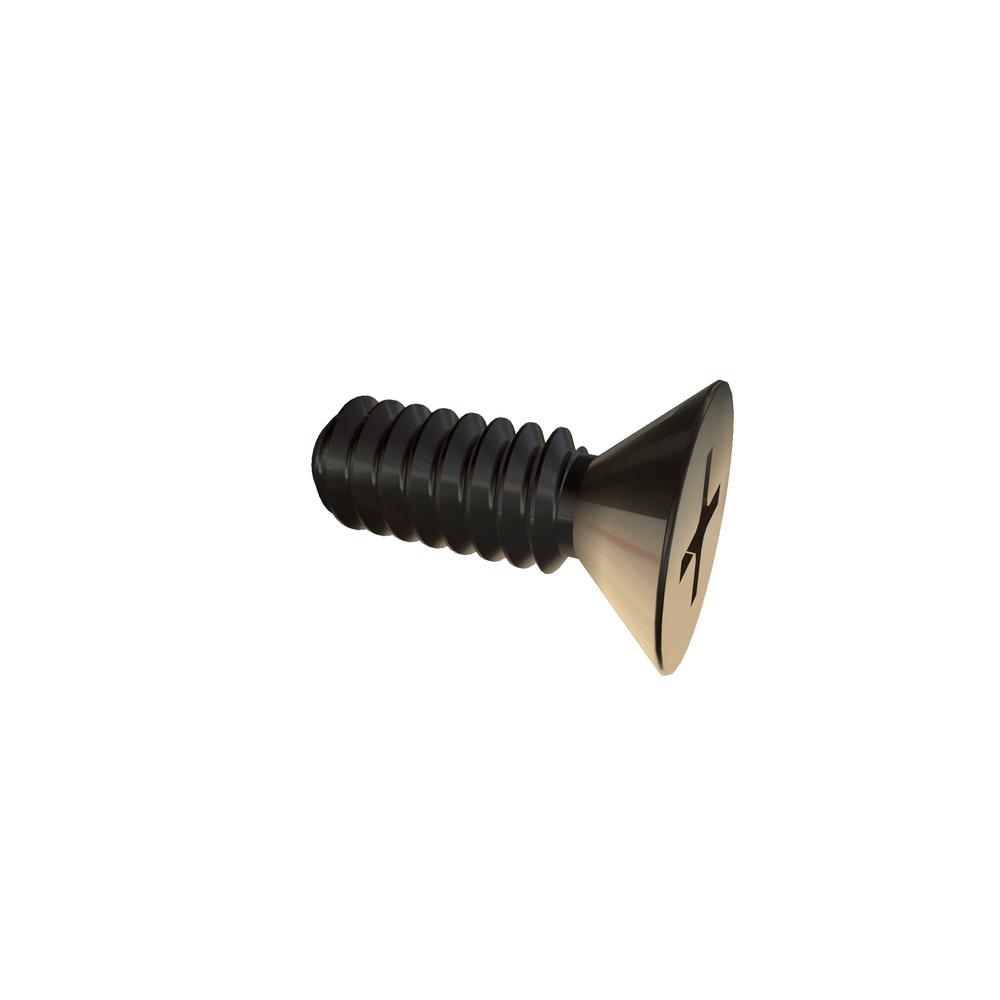

Image for reference purposes only. Actual product may vary.
4C31PFM3
4-40 X 5/16 PHIL FLAT TYPE 316 SST
Alternate Codes: 91500A124
4-40 X 5/16 Phillips Flat Head TYPE 316 Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 4-40 |
| Length | 0.31in |
| Drive Type | Phillips |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Brand | VARIED |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Flat |
| Drive Size | 1 |
| Recess Diameter | 0.122in |
| Head Height | 0.067in |
| Recess Depth (Min.) | 0.066in |
| Recess Depth (Max.) | 0.082in |
| Additional Industry Cross Reference | 91500A124 |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
