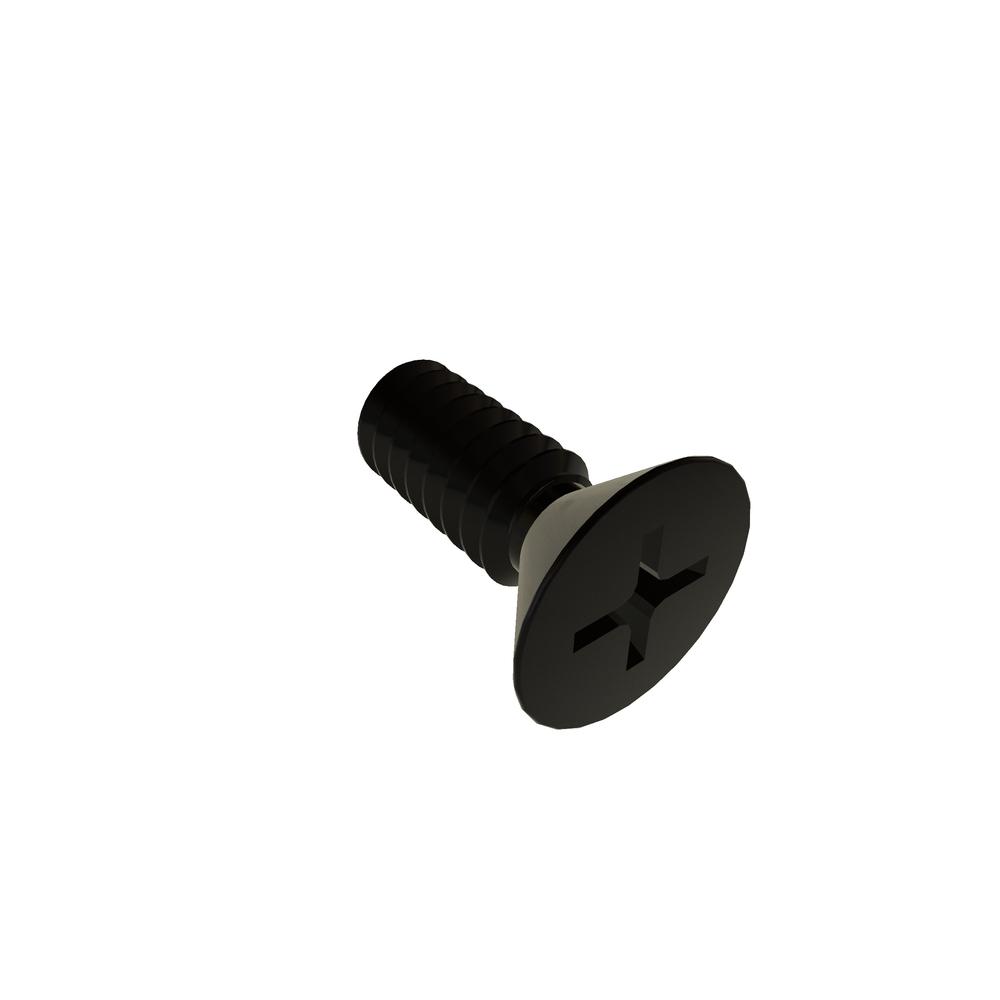

4C31PFMSB
4-40 X 5/16 PHIL FLAT SST RoHS BLK RoHS
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|
| $0.139 | $0.083 | $0.070 | $0.057 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.122in |
| Head Height | 0.067in |
| Recess Depth (Min.) | 0.066in |
| Recess Depth (Max.) | 0.082in |
| Brand | VARIED |
| Additional Industry Cross Reference | 96640A055 |
| Length | 0.31in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
