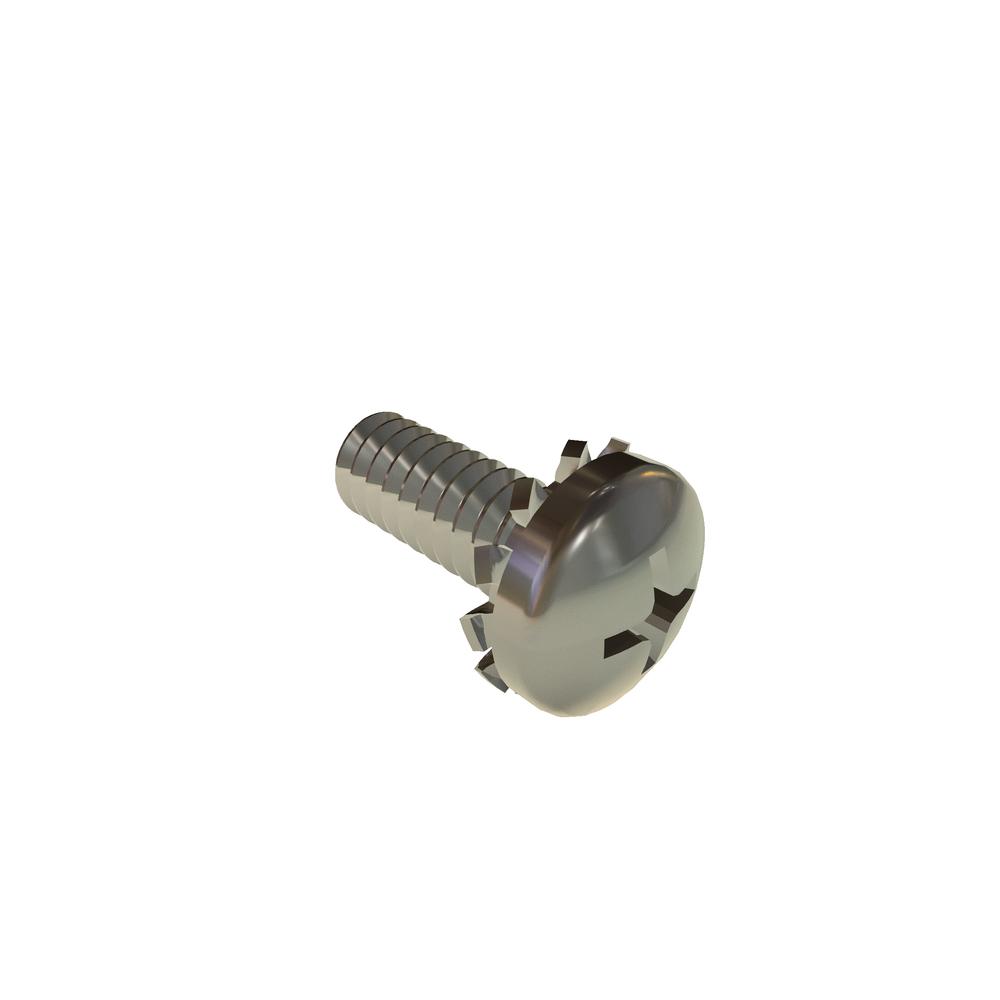

Image for reference purposes only. Actual product may vary.
4C31PPES
4-40 X 5/16 PHIL PAN EXT SEMS SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.383 | $0.202 | $0.160 | $0.147 | $0.123 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 5/16in |
| Thread Size | 4-40 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 0.115in |
| Washer Type | External Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.018in |
| Lock Washer Outside Diameter (Min.) | 0.220in |
| Lock Washer Outside Diameter (Max.) | 0.230in |
| Drive Size | 1 |
| Penetration Depth (Min.) | 0.053in |
| Penetration Depth (Max.) | 0.071in |
| Head Radius (Min.) | 0.010in |
| Additional Industry Cross Reference | 95345A428 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Lock Washer Thickness (Min.) | 0.012in |
