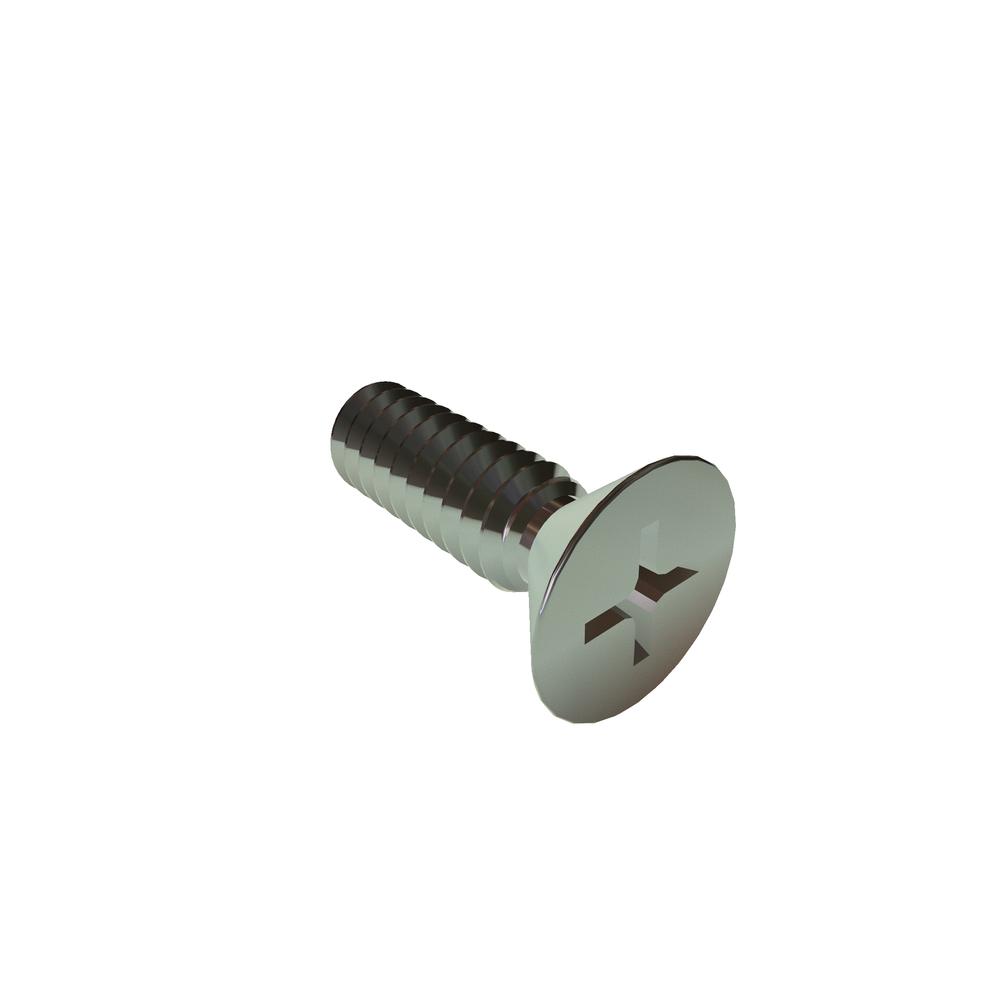

4-40 X 3/8 PHIL FLAT SST RoHS
4C37PFMS
| Item Id | 4C37PFMS |
| Description | 4-40 X 3/8 PHIL FLAT SST RoHS |
| Alternate Codes | 005264, 01448-1, 0960-0028, 171-0002-00, 1901-0028, 2804045-00-01, 2804045-06-01, 2806-0208-06, 41662, 475-0006, 510-3606, 581922-06, 701-0408-006, 73-H145-00 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91771A108 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
| Head Height | 0.067in |
| Head Type | Flat |
| Length | 0.37in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| Recess Depth (Max.) | 0.082in |
| Recess Depth (Min.) | 0.066in |
| Recess Diameter | 0.122in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
