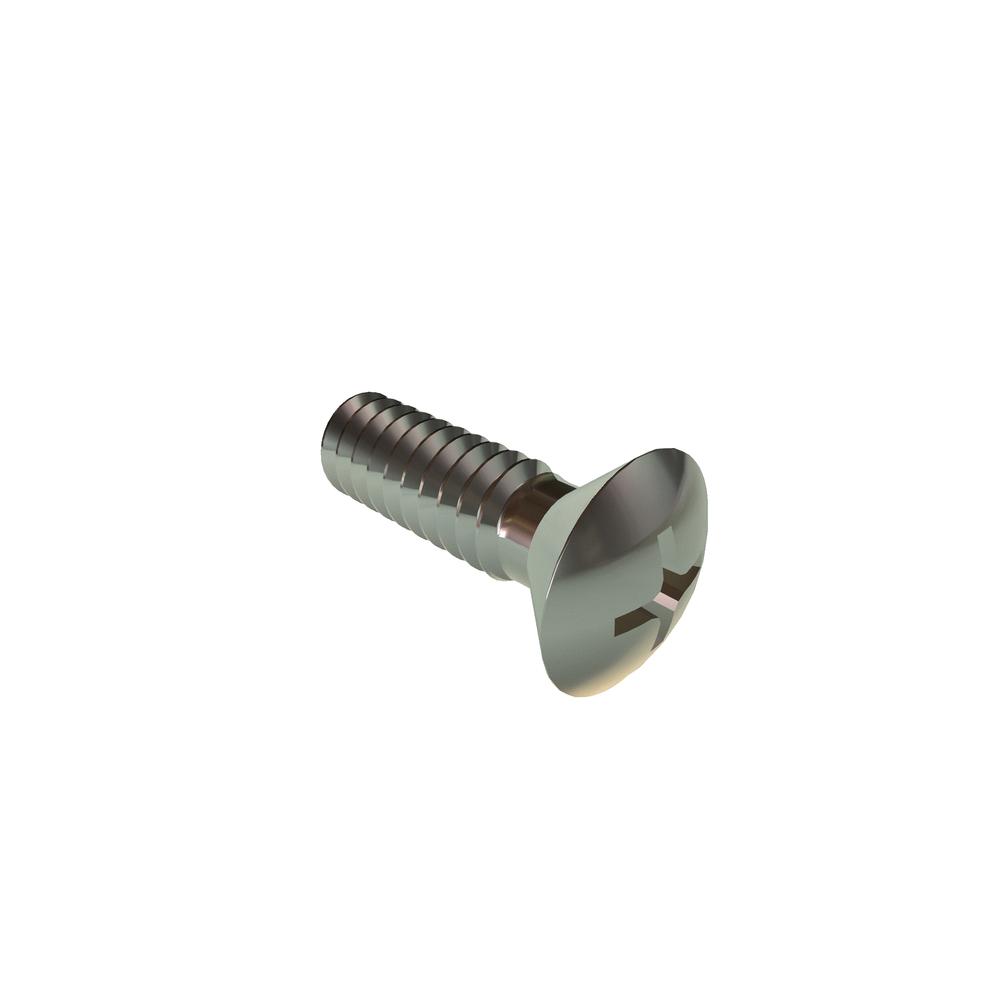

4-40 X 3/8 PHIL OVAL SST RoHS
4C37POMS
| Item Id | 4C37POMS |
| Description | 4-40 X 3/8 PHIL OVAL SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91802A108 |
| Brand | VARIED |
| Crown Height | 0.037in |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
| Head Height | 0.104in |
| Head Side Height (Ref.) | 0.067in |
| Head Type | Oval |
| Length | 0.37in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| Recess Depth (Max.) | 0.087in |
| Recess Depth (Min.) | 0.070in |
| Recess Diameter | 0.130in |
| RoHS | Compliant |
| Slot Depth (Max.) | 0.059in |
| Slot Depth (Min.) | 0.049in |
| Slot Width (Max.) | 0.039in |
| Slot Width (Min.) | 0.031in |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
