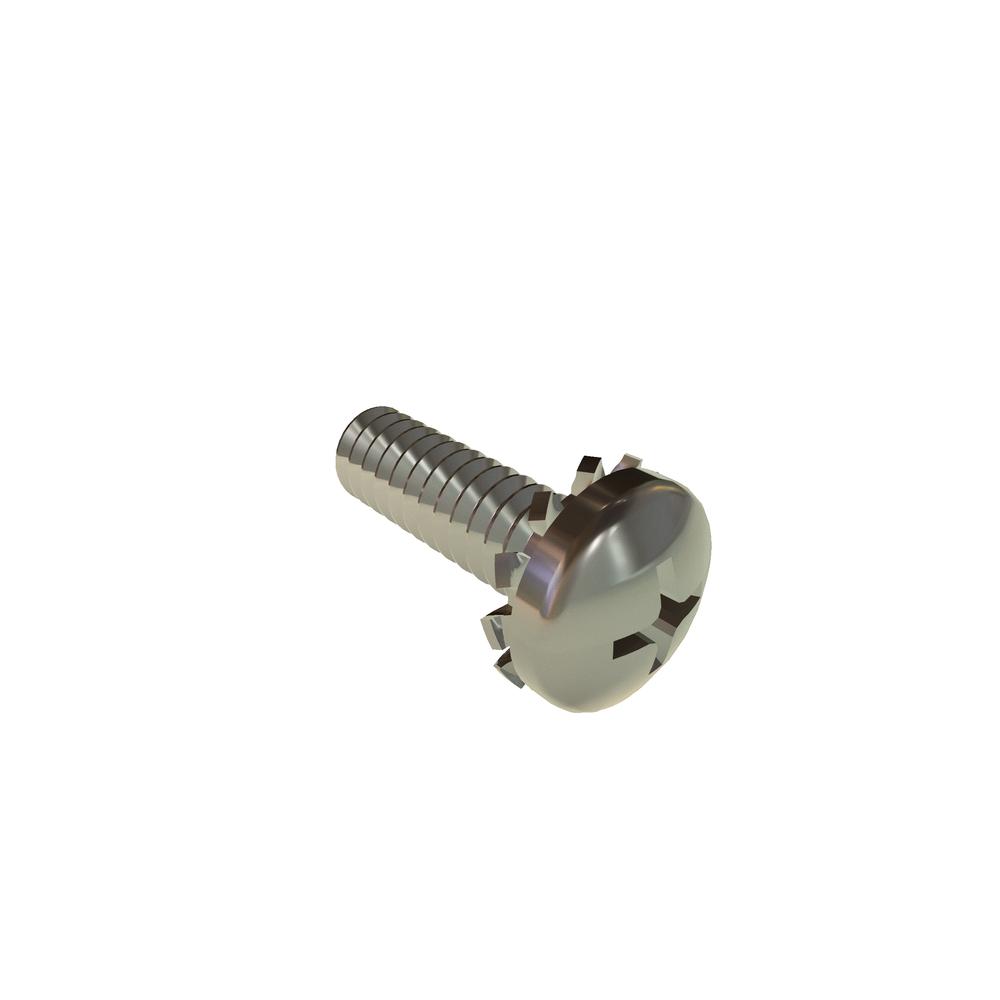

4-40 X 3/8 PHIL PAN EXT SEMS SST RoHS
4C37PPES
| Item Id | 4C37PPES |
| Description | 4-40 X 3/8 PHIL PAN EXT SEMS SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 95345A432 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Head Radius (Min.) | 0.010in |
| Head Type | Pan |
| Length | 3/8in |
| Lock Washer Outside Diameter (Max.) | 0.230in |
| Lock Washer Outside Diameter (Min.) | 0.220in |
| Lock Washer Thickness (Max.) | 0.018in |
| Lock Washer Thickness (Min.) | 0.012in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| Penetration Depth (Max.) | 0.071in |
| Penetration Depth (Min.) | 0.053in |
| Recess Diameter | 0.115in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Washer Type | External Tooth Lock Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
