4C37PPIZB

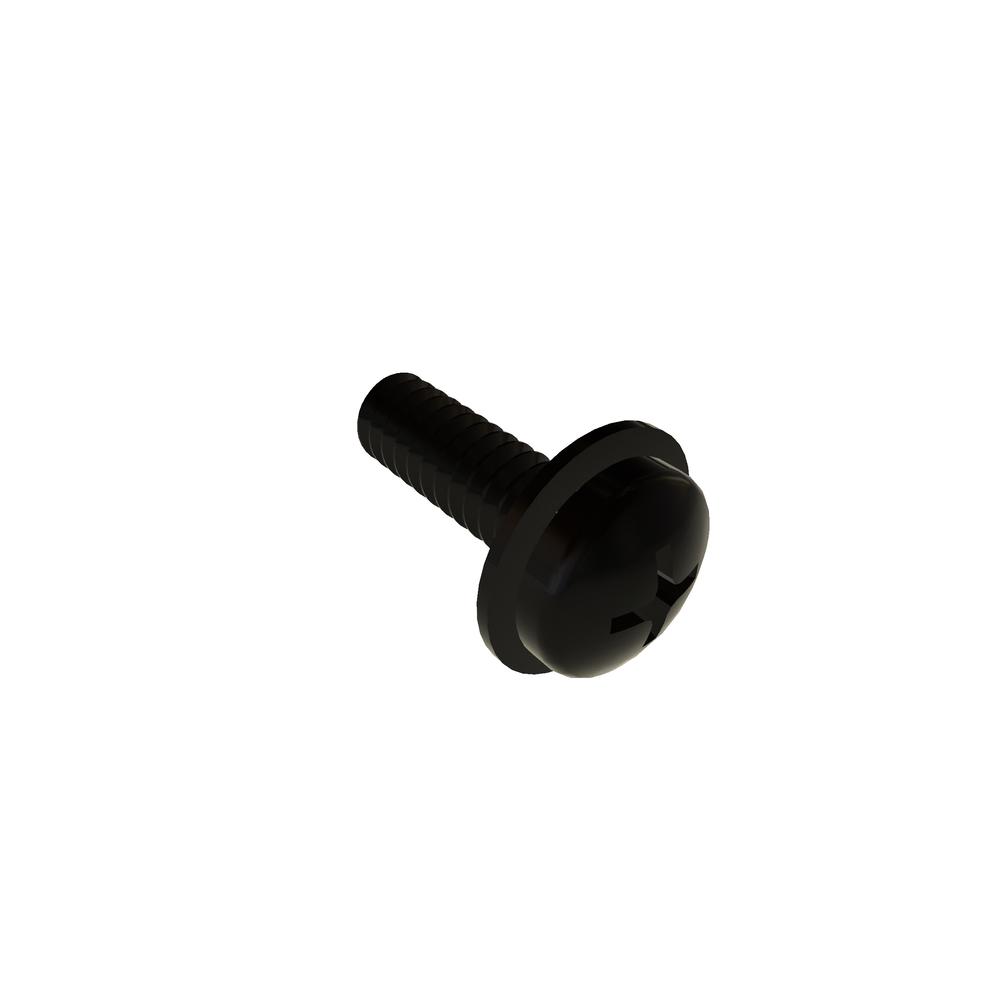

4-40 X 3/8 PHIL PAN INT SEMS STL BLK
Alternate Codes: 23075
RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|
| $0.132 | $0.079 | $0.066 | $0.054 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.018in |
| Lock Washer Outside Diameter (Min.) | 0.258in |
| Lock Washer Outside Diameter (Max.) | 0.268in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 0.053in |
| Penetration Depth (Max.) | 0.071in |
| Recess Diameter | 0.115in |
| Head Radius (Min.) | 0.010in |
| Brand | VARIED |
| Length | 3/8in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Lock Washer Thickness (Min.) | 0.012in |
