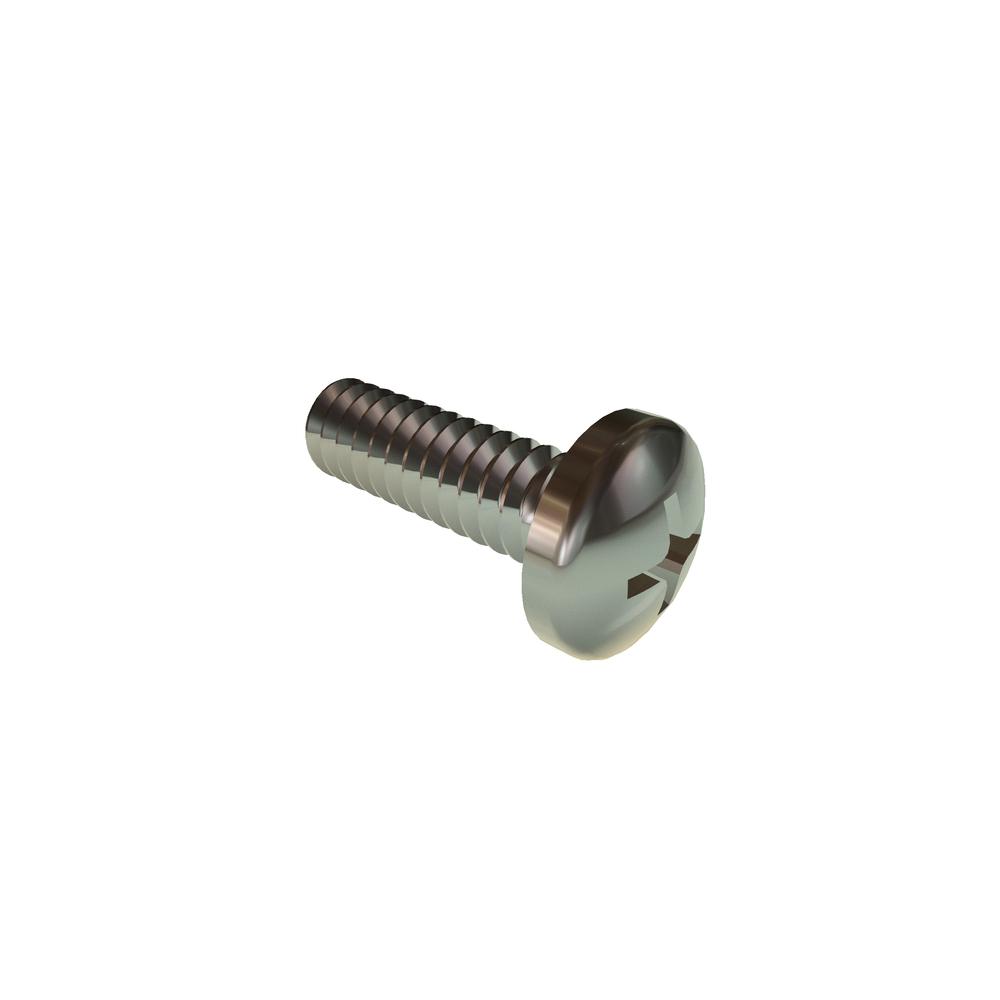

4-40 X 3/8 PH PAN SST RoHS
4C37PPMS
| Item Id | 4C37PPMS |
| Description | 4-40 X 3/8 PHIL PAN SST RoHS |
| Alternate Codes | 003718, 01962-1, 02737-006, 0439-0374, 10-1110, 100592-02, 10259, 12-222004-06, 130020, 200.281, 238-004-003, 25-0005-06, 2600126-05, 2801045-06-01, 2803-0027, 2825-303, 283-0002-01, 3690-02101, 477-0010, 490-0083, 510-3007, 510299-029, 701-0194-012, 701-0308-006, 7270120, 900090 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 91772A108 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Head Radius (Min.) | 0.010in |
| Head Type | Pan |
| Length | 0.37in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| Recess Depth (Max.) | 0.071in |
| Recess Depth (Min.) | 0.053in |
| Recess Diameter | 0.115in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
