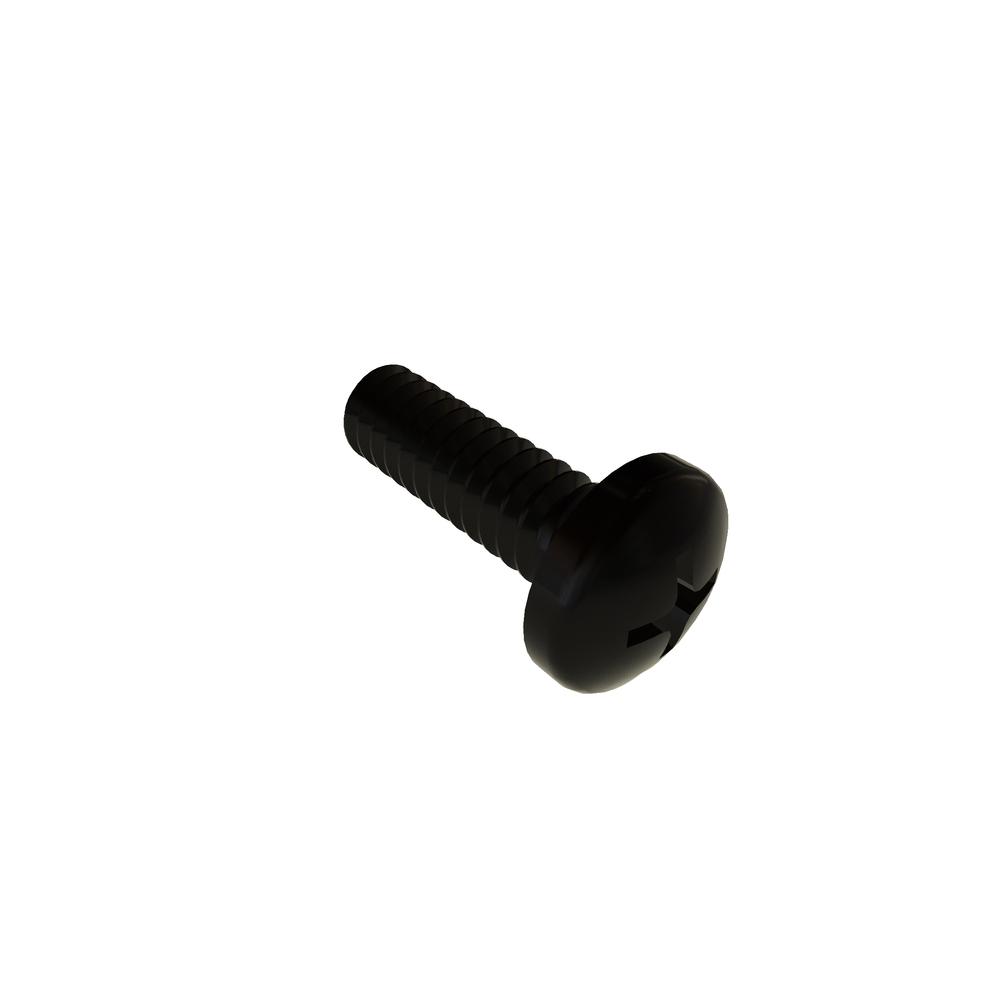

4C37PPMZ/BR
4-40 X 3/8 PH PAN STL BLK ZINC RoHS
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.175 | $0.105 | $0.088 | $0.072 | $0.063 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Zinc Black |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.115in |
| Head Radius (Min.) | 0.010in |
| Recess Depth (Min.) | 0.053in |
| Recess Depth (Max.) | 0.071in |
| Brand | VARIED |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
