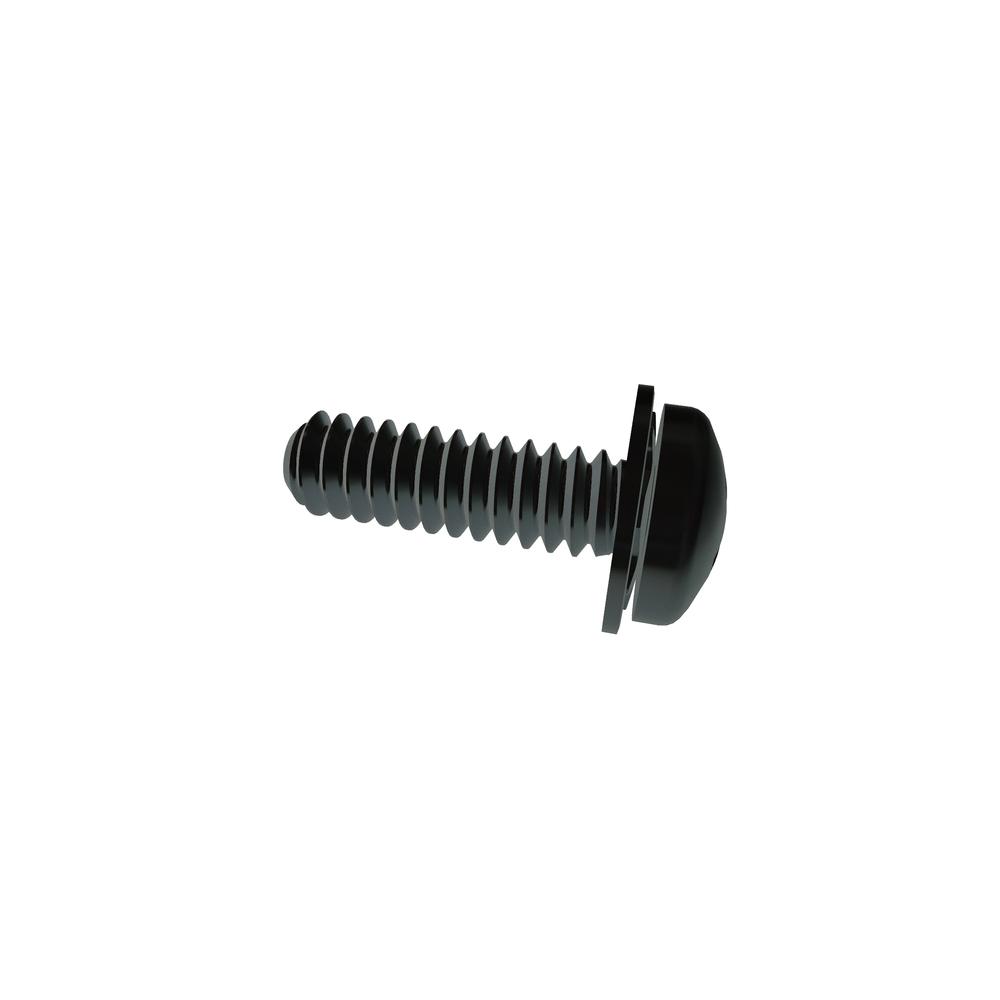

4-40 X 3/8 PH PAN SQ CONE SEMS STL ZN
4C37PPQZR
| Item Id | 4C37PPQZR |
| Description | 4-40 X 3/8 PHIL PAN SQ CONE SEMS STL ZN |
| Alternate Codes | 90400A215 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 90400A215 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Head Radius (Min.) | 0.010in |
| Head Type | Pan |
| Length | 3/8in |
| Lock Washer Height (Max.) | 0.039in |
| Lock Washer Height (Min.) | 0.021in |
| Lock Washer Outside Diameter (Max.) | 0.250in |
| Lock Washer Outside Diameter (Min.) | 0.244in |
| Lock Washer Thickness (Min.) | 0.015in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| Penetration Depth (Max.) | 0.071in |
| Penetration Depth (Min.) | 0.053in |
| Recess Diameter | 0.115in |
| RoHS | Compliant |
| Thread Size | 4-40 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Washer Type | Square Cone Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
