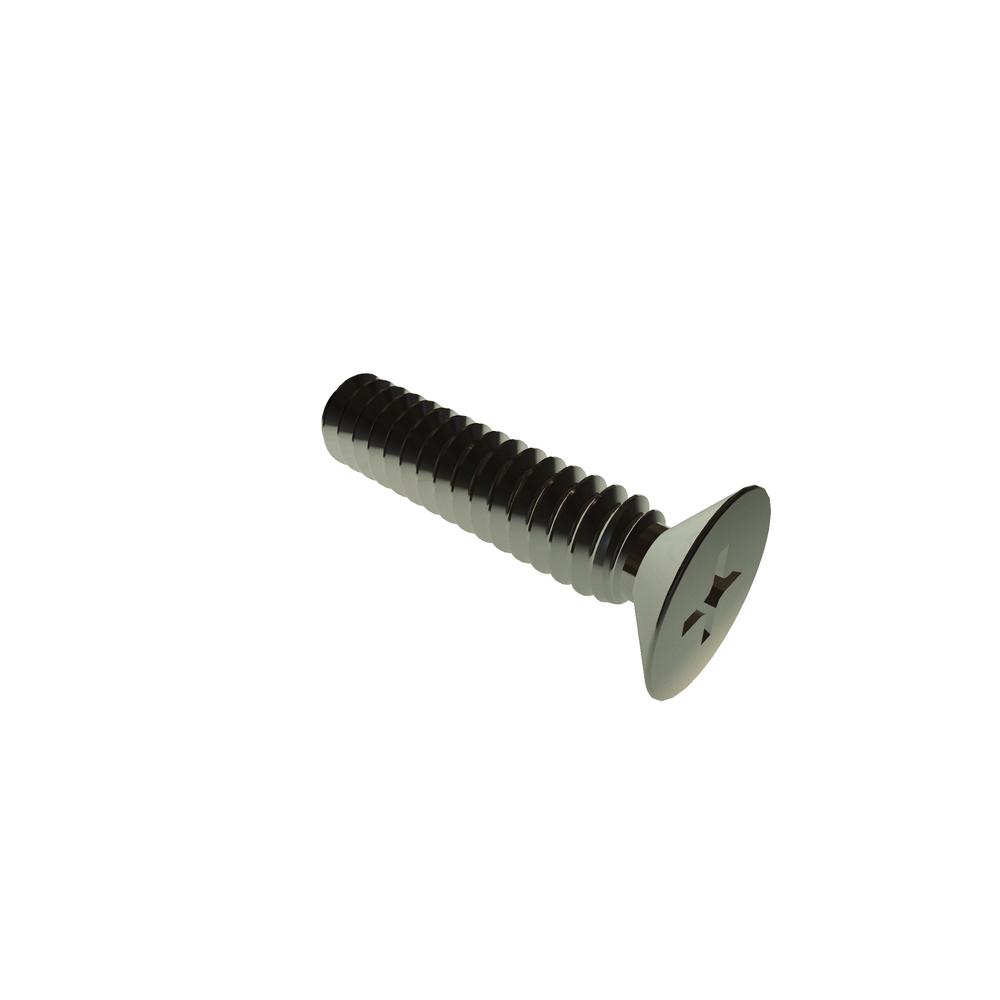

4C50PFHS/P
4-40 X 1/2 PHIL FLAT 100 DEG PATCH SST
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.687 | $0.378 | $0.315 | $0.270 | $0.223 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Flat 100 Degree |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.110in |
| Head Height | 0.049in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.071in |
| Brand | VARIED |
| Length | 1/2in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.188in |
