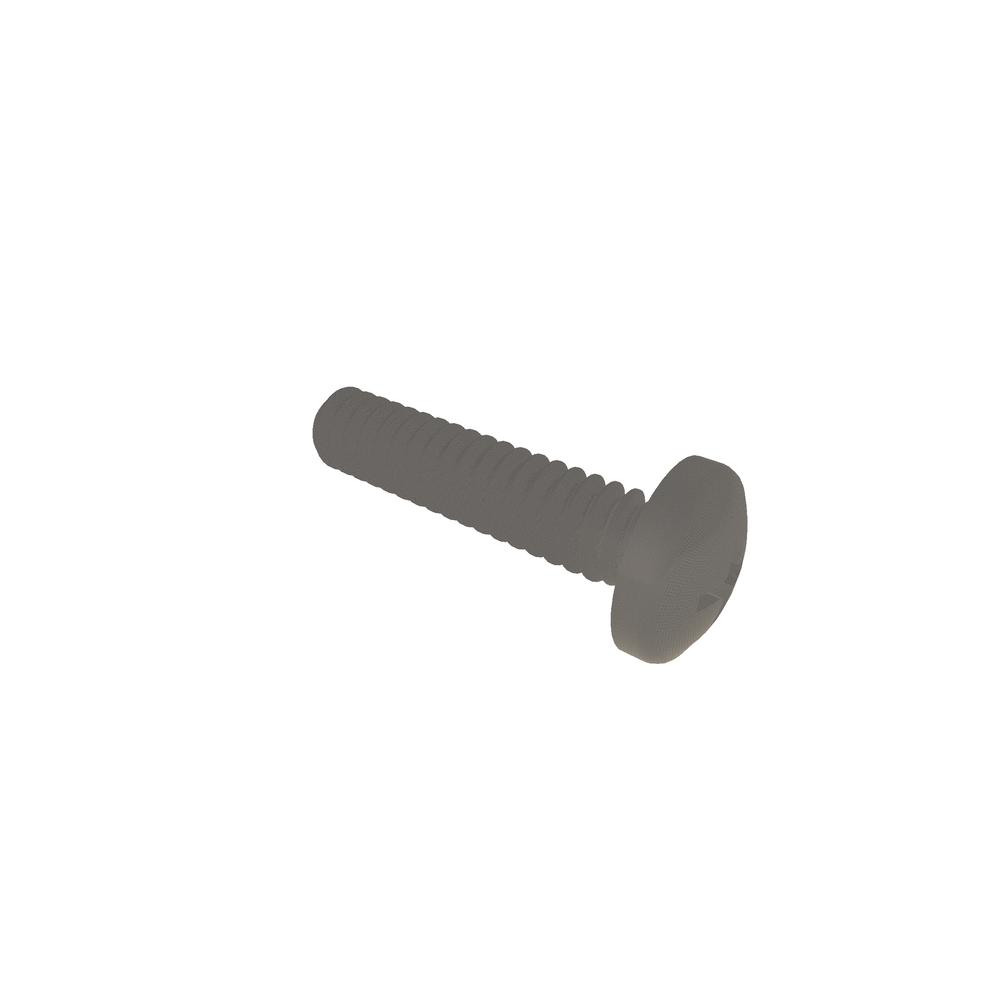

4C50PPMN
4-40 X 1/2 PH PAN NYL
Alternate Codes: 518285
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.206 | $0.124 | $0.103 | $0.084 | $0.074 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Nylon |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.115in |
| Head Radius (Min.) | 0.010in |
| Recess Depth (Min.) | 0.053in |
| Recess Depth (Max.) | 0.071in |
| Brand | VARIED |
| Additional Industry Cross Reference | 94735A722 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
