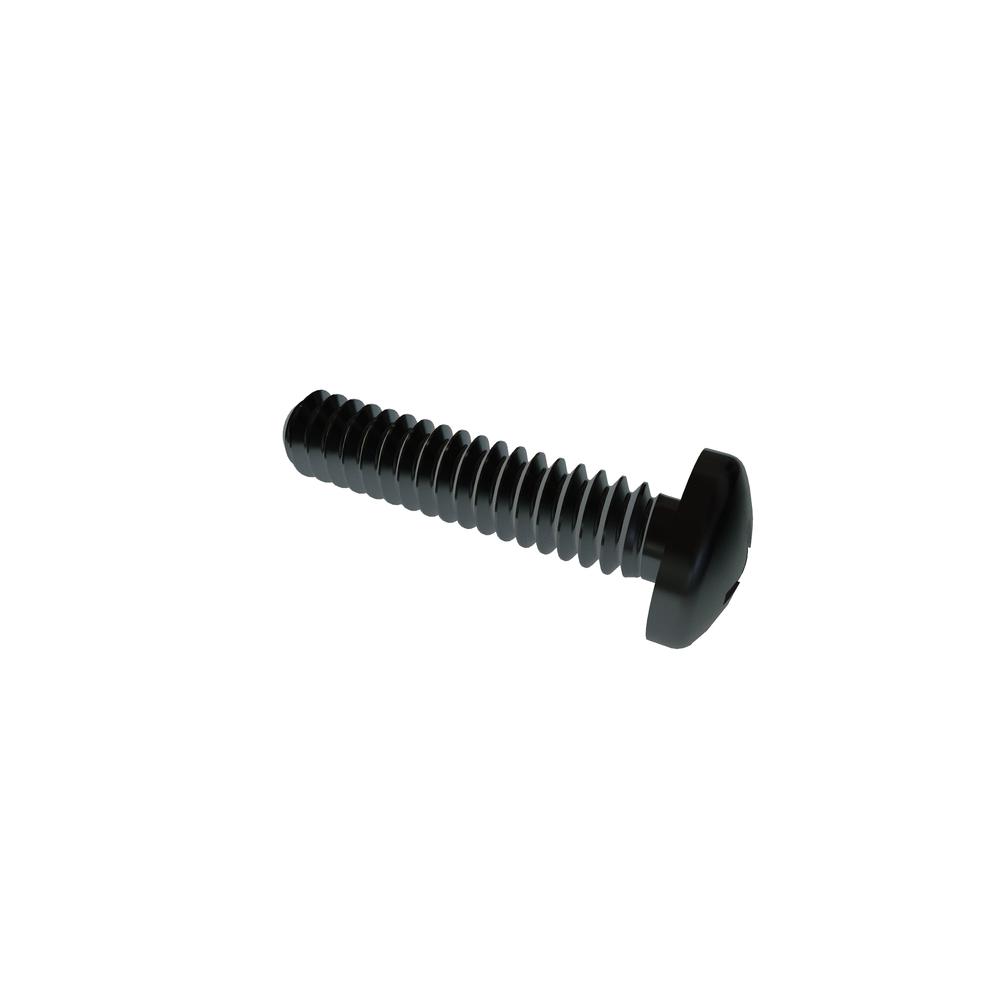

4C50PPMZR
4-40 X 1/2 PH PAN STL ZN CR3
Alternate Codes: 00255-0008, 011857, 047457, 12-0010-001, 12147, 1901-0131, 232-0021-07, 4C50PPMZt, 5991002, 60-0007-001, 711-2014, 72042050, 780-00123
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.085 | $0.052 | $0.038 | $0.029 | $0.027 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Pan |
| Drive Type | Phillips |
| Additional Industry Cross Reference | 90272A110 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
