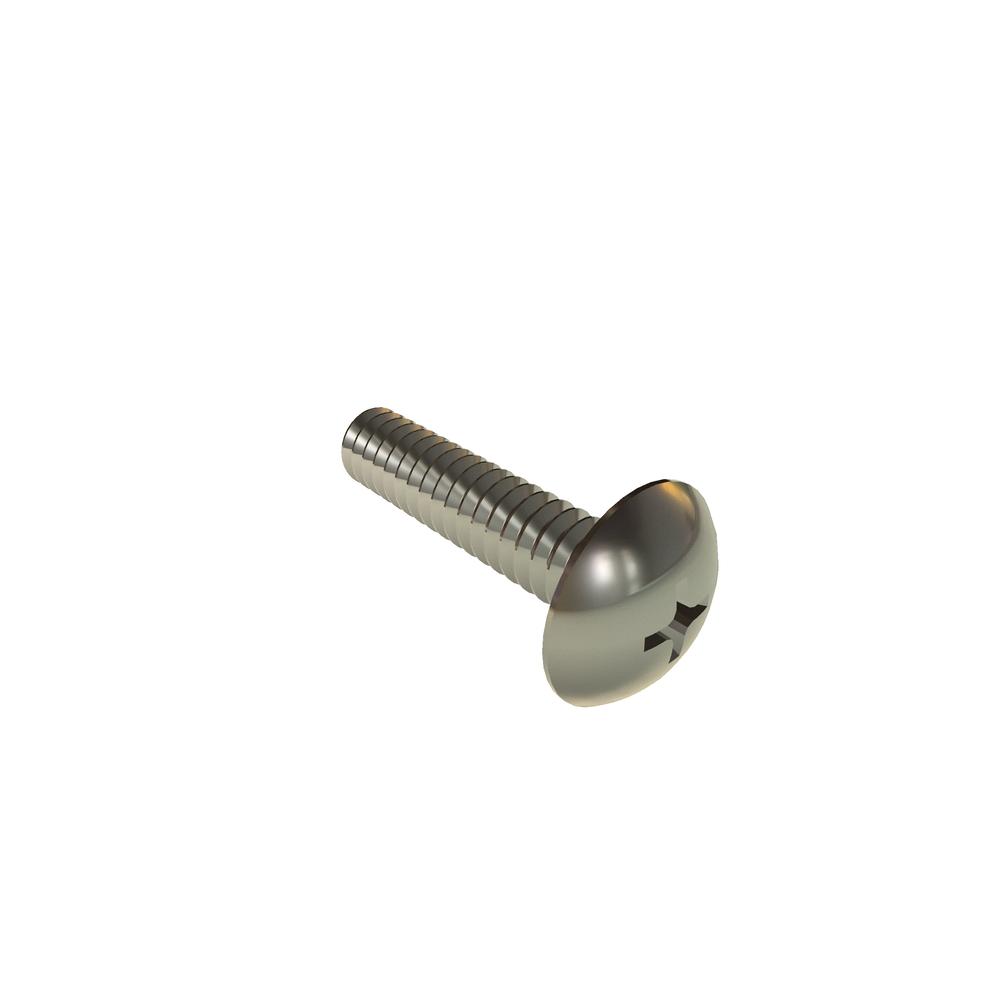

4C50PTMS
4-40 X 1/2 PHIL TRUSS SST RoHS
Alternate Codes: 91770A096
Pricing per Unit
| 1-99 pcs |
|---|
| $0.208 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Truss |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.105in |
| Head Radius (Min.) | 0.169in |
| Recess Depth (Min.) | 0.044in |
| Recess Depth (Max.) | 0.062in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91770A096 |
| Length | 0.50in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.257in |
| Head Diameter (Min.) | 0.241in |
| Head Height (Max.) | 0.069in |
| Head Height (Min.) | 0.059in |
