4C50SFIS/V

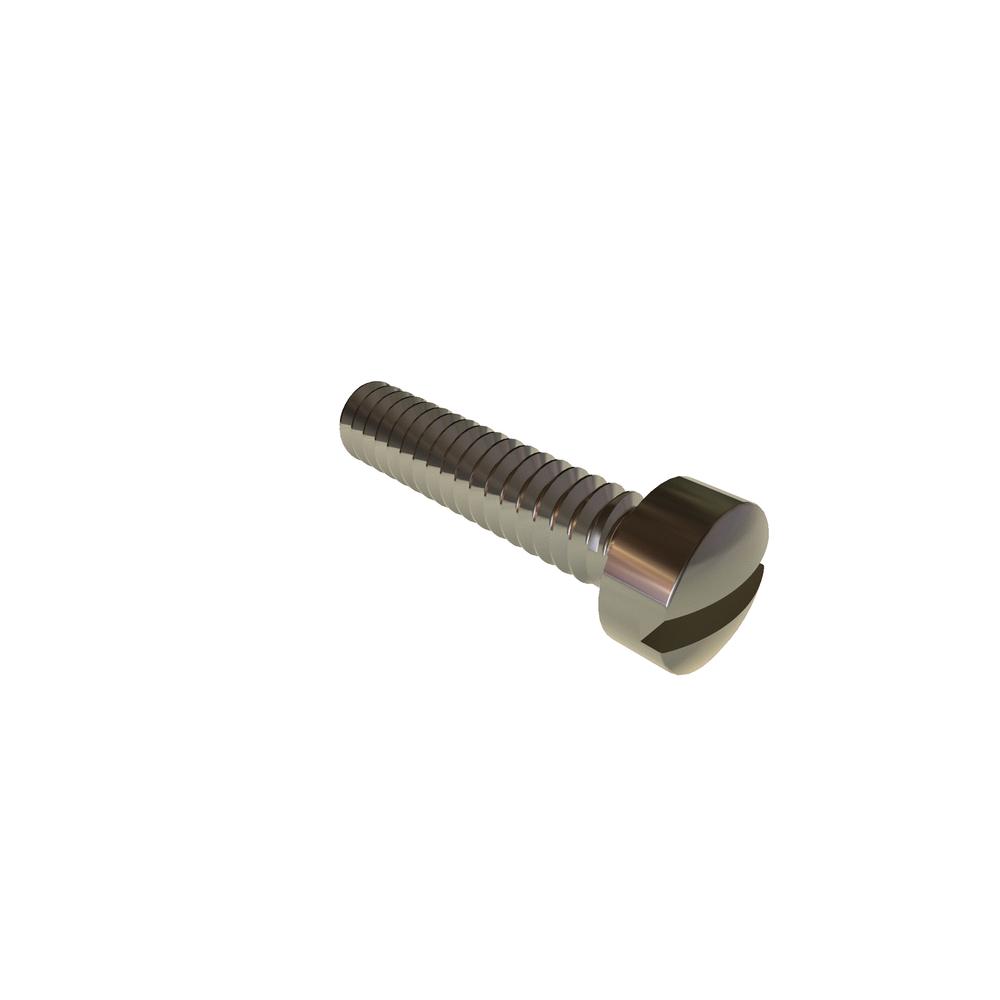

4-40 X 1/2 SLOT FILL VNT SST RoHS
Alternate Codes: N/A
25 PER BAG
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Drive Type | Slotted |
| Slot Depth (Min.) | 0.035in |
| Slot Depth (Max.) | 0.048in |
| Slot Width (Min.) | 0.031in |
| Slot Width (Max.) | 0.039in |
| Head Side Height (Min.) | 0.069in |
| Head Side Height (Max.) | 0.079in |
| Brand | VARIED |
| Type | Slotted Fillister Head Vented Machine Screw |
| Length | 0.50in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.183in |
| Head Diameter (Min.) | 0.166in |
| Head Height (Max.) | 0.107in |
| Head Height (Min.) | 0.088in |
| Vent Hole Diameter | 0.035in |
