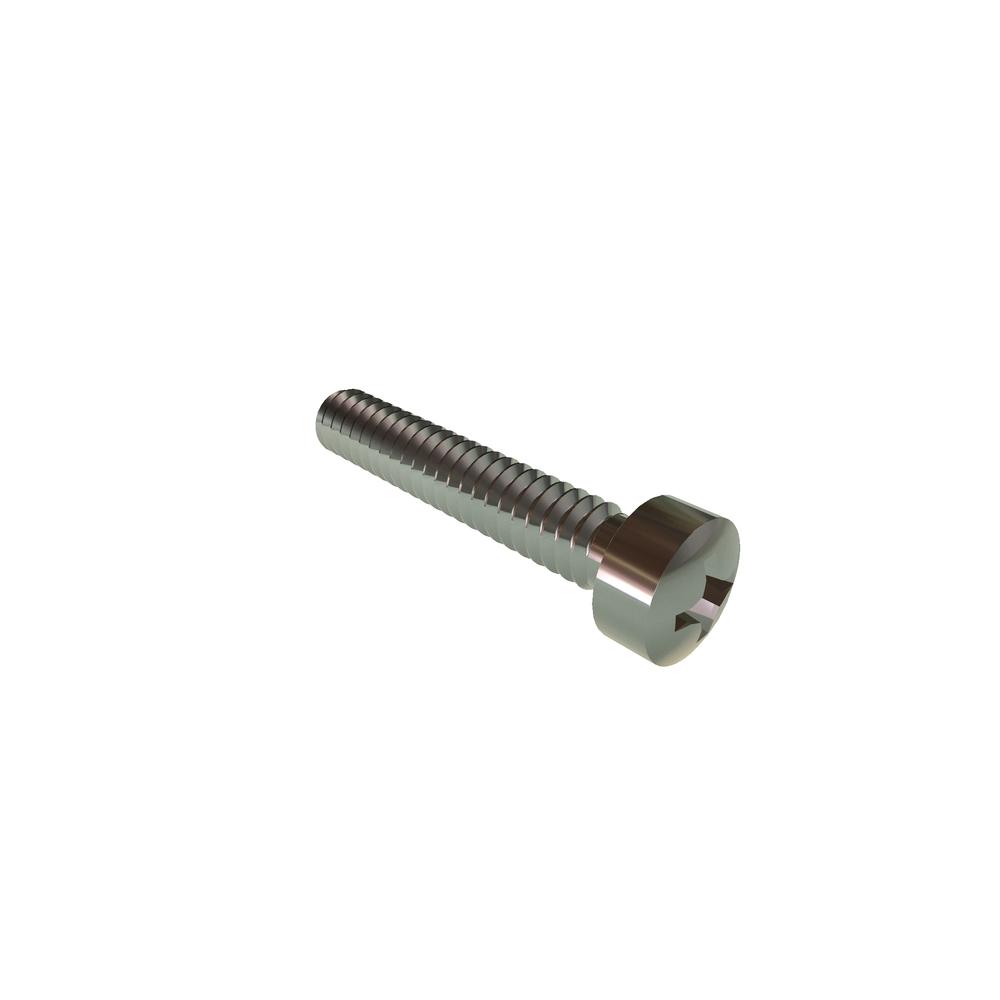

4C62PFIS
4-40 X 5/8 PHIL FILL SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.223 | $0.134 | $0.112 | $0.091 | $0.080 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Fillister |
| Drive Type | Phillips |
| Drive Size | #1 |
| Recess Diameter | 0.115in |
| Recess Depth (Min.) | 0.053in |
| Recess Depth (Max.) | 0.071in |
| Head Side Height (Min.) | 0.069in |
| Head Side Height (Max.) | 0.079in |
| Brand | VARIED |
| Length | 0.62in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.183in |
| Head Diameter (Min.) | 0.166in |
| Head Height (Max.) | 0.107in |
| Head Height (Min.) | 0.088in |
