4C75PFMZR

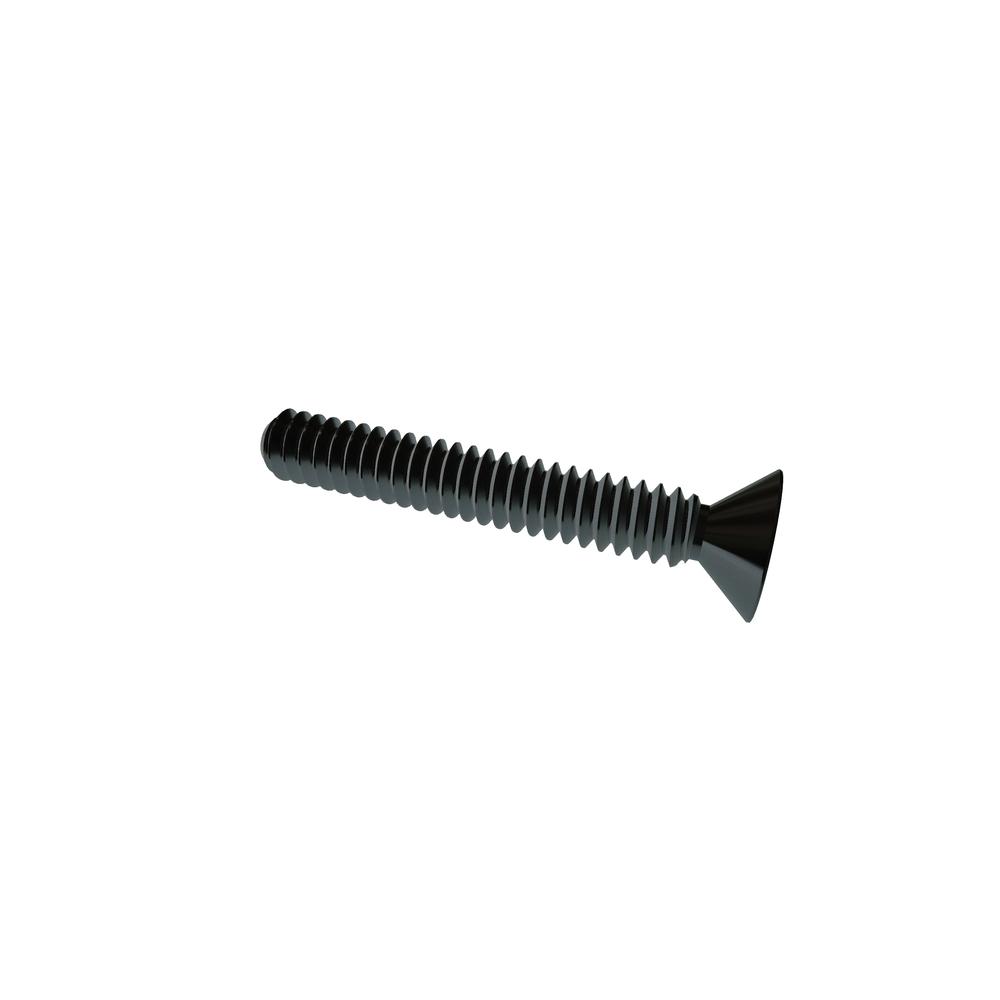

4-40 X 3/4 PHIL FLAT STL ZN CR3
Alternate Codes: 90273A113
Pricing per Unit
| 1-249 pcs |
|---|
| $0.210 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.122in |
| Head Height | 0.067in |
| Recess Depth (Min.) | 0.066in |
| Recess Depth (Max.) | 0.082in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90273A113 92703A213 |
| Length | 0.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
