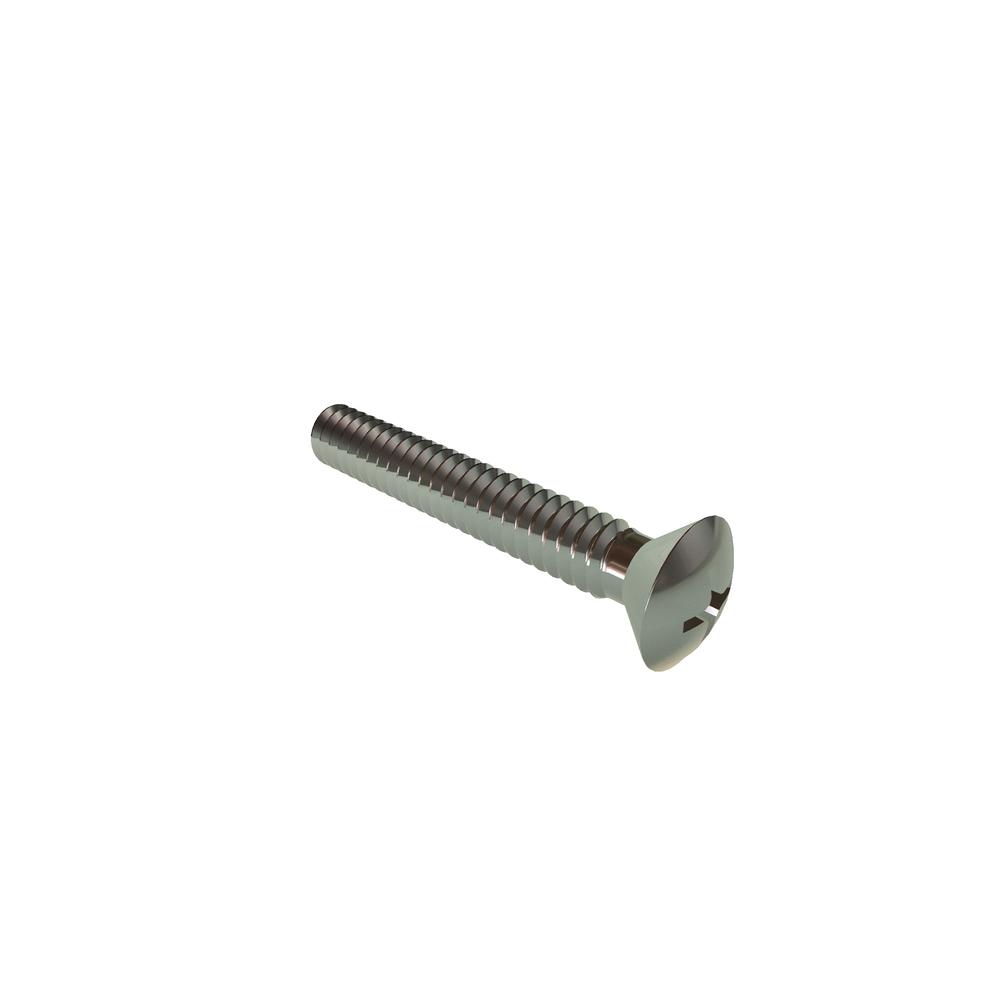

Image for reference purposes only. Actual product may vary.
4C75POMS
4-40 X 3/4 PHIL OVAL SST RoHS
Alternate Codes: N/A
4-40 X 3/4 Phillips Oval Head Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 0.75in |
| Thread Size | 4-40 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Oval |
| Recess Diameter | 0.130in |
| Slot Depth (Min.) | 0.049in |
| Slot Depth (Max.) | 0.059in |
| Slot Width (Min.) | 0.031in |
| Slot Width (Max.) | 0.039in |
| Head Side Height (Ref.) | 0.067in |
| Head Height | 0.104in |
| Recess Depth (Min.) | 0.070in |
| Recess Depth (Max.) | 0.087in |
| Additional Industry Cross Reference | 91802A113 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.212in |
| Head Diameter (Min.) | 0.191in |
| Crown Height | 0.037in |
