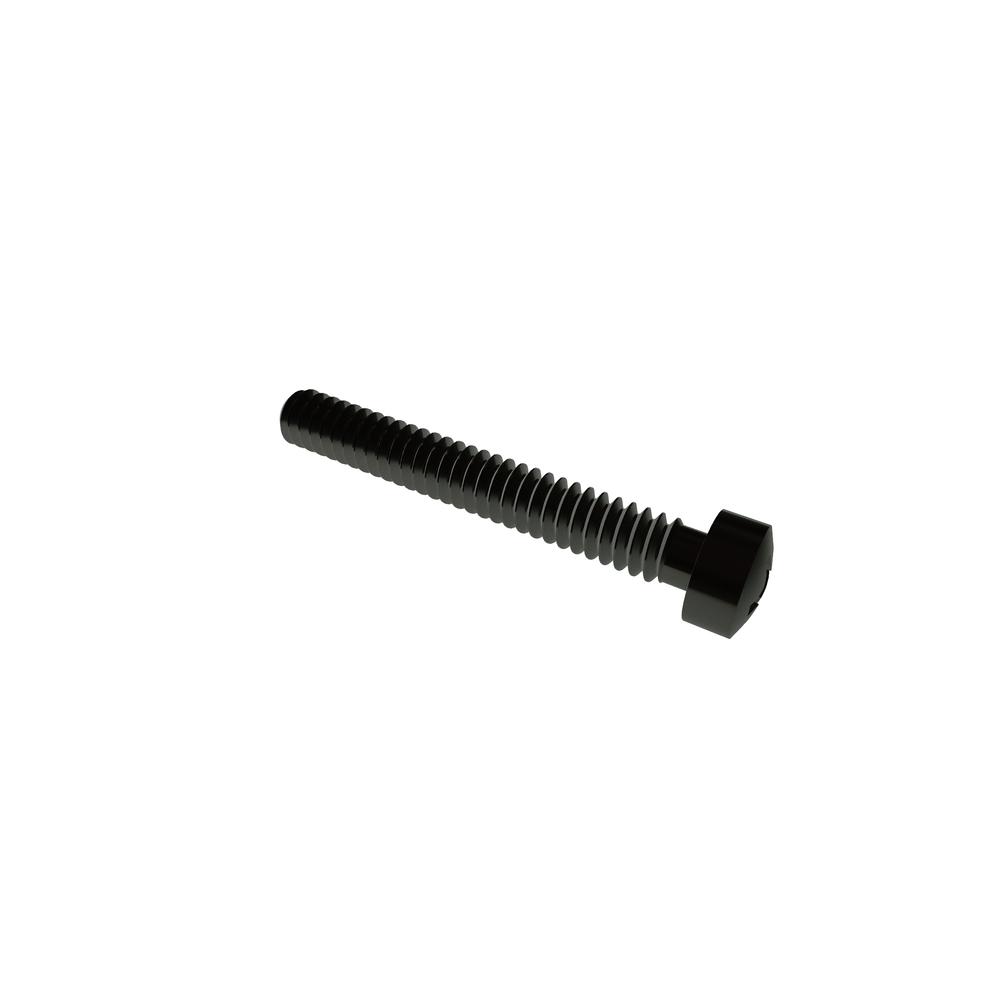

4C81PFIZZ-NONROHS
4-40 X 13/16 PHIL FILL STL ZN
Alternate Codes: 031G126010, 4C81PFIZZ
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Zinc Clear |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Head Type | Fillister |
| Drive Type | Phillips |
| Drive Size | #1 |
| Recess Diameter | 0.115in |
| Recess Depth (Min.) | 0.053in |
| Recess Depth (Max.) | 0.071in |
| Head Side Height (Min.) | 0.069in |
| Head Side Height (Max.) | 0.079in |
| Brand | VARIED |
| Length | 0.81in |
| RoHS | Non Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.183in |
| Head Diameter (Min.) | 0.166in |
| Head Height (Max.) | 0.107in |
| Head Height (Min.) | 0.088in |
