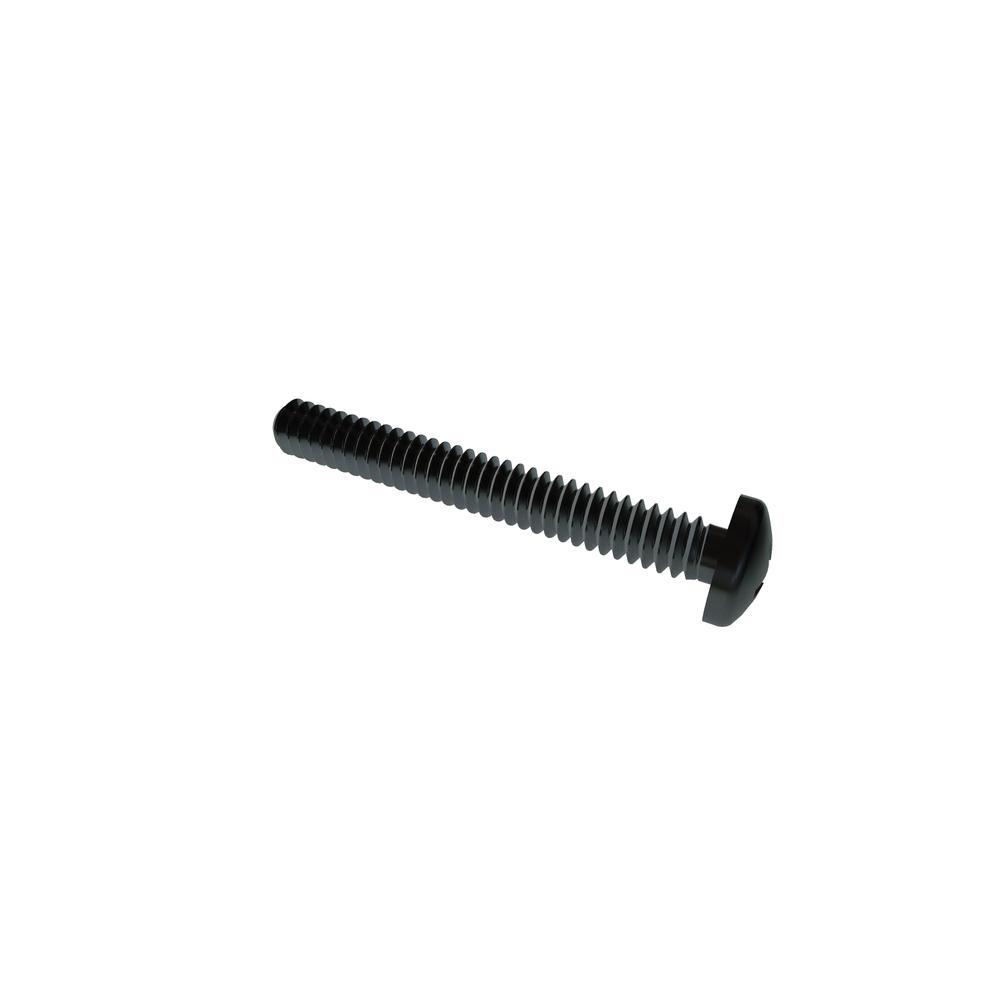

Image for reference purposes only. Actual product may vary.
4C87PPMZR
4-40 X 7/8 PH PAN STL ZN CR3
Alternate Codes: 2831-022-28, 530-00405-12, 90272A114
4-40 X 7/8 Phillips Pan Head Steel Zinc Plated RoHS3
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|
| $0.117 | $0.072 | $0.052 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 0.87in |
| Thread Size | 4-40 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Material | Steel |
| Units | Inch |
| Drive Size | 1 |
| Recess Diameter | 0.115in |
| Head Radius (Min.) | 0.010in |
| Recess Depth (Min.) | 0.053in |
| Recess Depth (Max.) | 0.071in |
| Additional Industry Cross Reference | 90272A114 90272A114 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
