4CKNTS

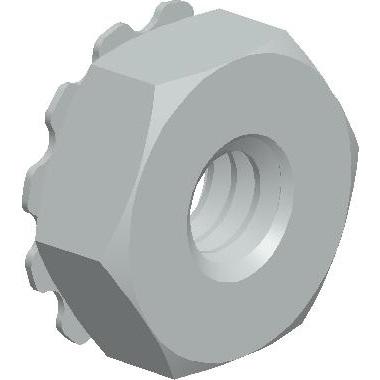

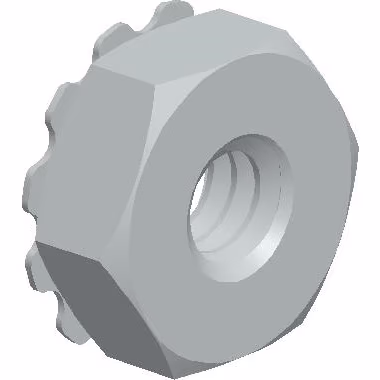

4-40 KEP NUT SST RoHS
Alternate Codes: 0439-1666, 100-00-131, 100654, 1100-0010, 11536, 12-0002553, 13-312004-00, 181-0003-00, 2502102, 251-004, 2630112-00, 27-0001-02, 2825-7015, 2826-1080, 2840005-04-01, 3005, 32-0002-003, 32-0008-001, 3500-01090, 41663, 51-44000-310, 516483, 529-0002, 580551-04, 6504-26, 915-31002-00, FS-E-02-3A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.279 | $0.147 | $0.116 | $0.107 | $0.090 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Brand | VARIED |
| Additional Industry Cross Reference | 96278A005 |
| RoHS | Compliant |
| Head Thickness (Max.) | 0.098in |
| Head Thickness (Min.) | 0.087in |
| Width Across Flat (Max.) | 0.250in |
| Width Across Flat (Min.) | 0.241in |
| Thickness (Max.) | 0.014in |
| Washer Diameter (Max.) | 0.286in |
| Washer Diameter (Min.) | 0.277in |
