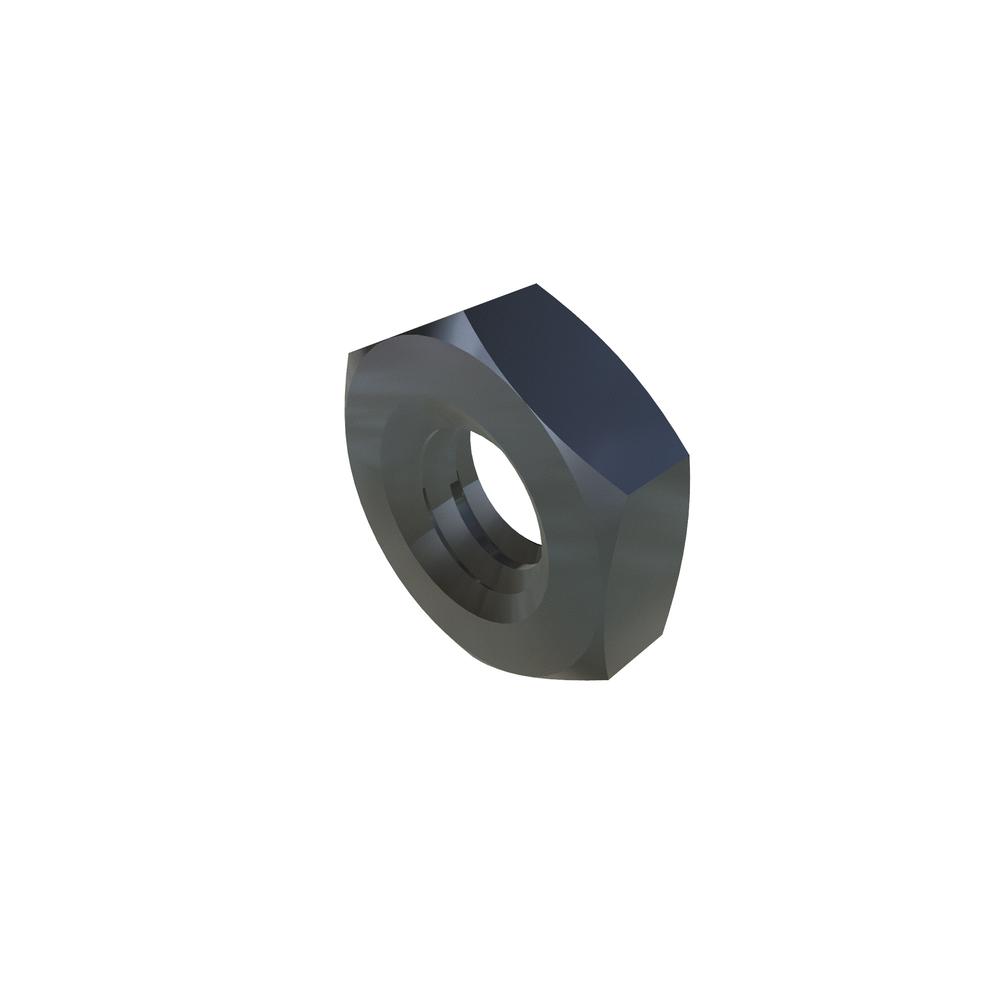

4CSHNZR
4-40 SP HEX NUT STL ZN CR3
Alternate Codes: 014426, 031G229210, 047210, 11958, 1901-0115, 210199-001, 230-00102, 2841-012-06, 4CSHNZt, 533-70405-00, 711508-00, 73-H307-00, 7350-0004, 82-0059-00, 90760A005, 93004-209, BTT210199-001
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.104 | $0.064 | $0.046 | $0.036 | $0.033 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Thickness (Min.) | 0.057in |
| Brand | VARIED |
| Type | Small Pattern Hex Nut |
| Additional Industry Cross Reference | 90760A005 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.2-2015 |
| Width Across Flat (Max.) | 0.188in |
| Width Across Flat (Min.) | 0.180in |
| Thickness (Max.) | 0.066in |
