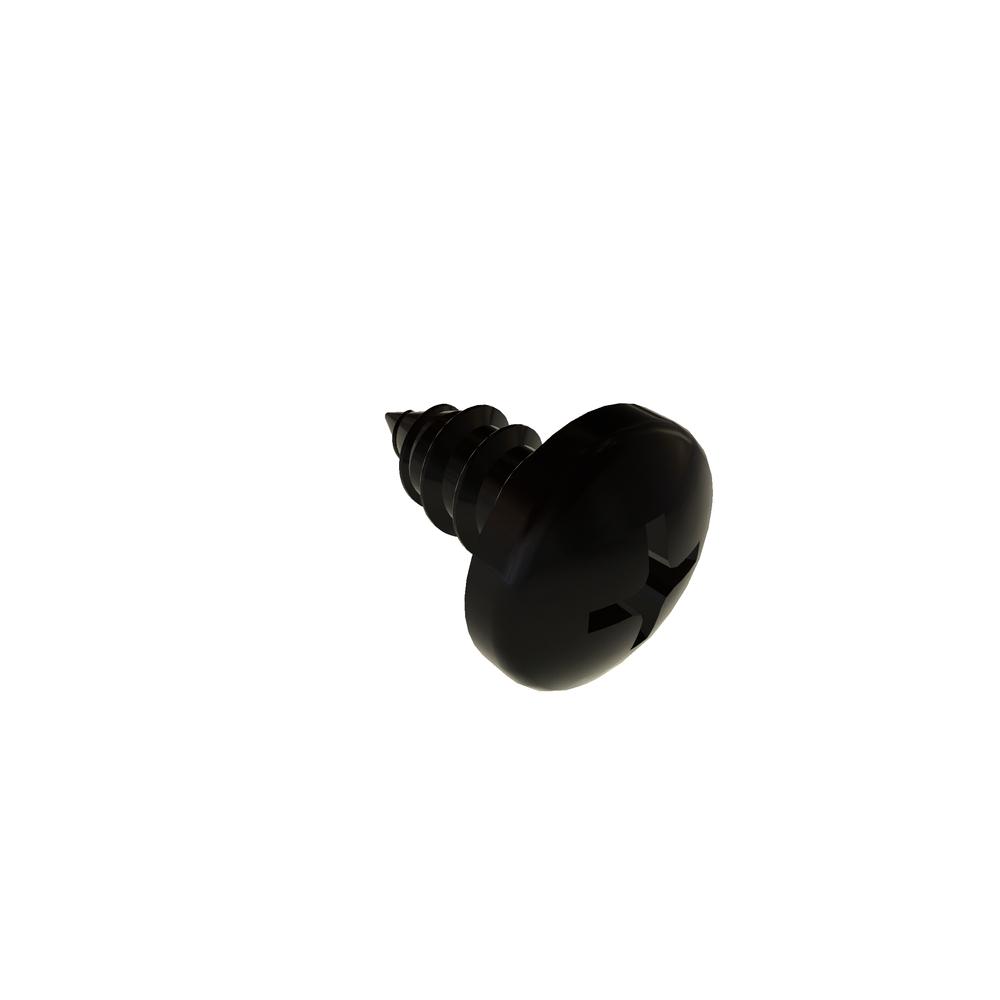

Image for reference purposes only. Actual product may vary.
4N25PPAZB
4 X 1/4 PHIL PAN T-AB STL BLK RoHS
Alternate Codes: 4N25PPAhB, 90935A131
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Brand | VARIED |
| Head Diameter (Min.) | 0.205in |
| Head Diameter (Max.) | 0.219in |
| Thread Size | 4-24 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 0.116in |
| Recess Depth (Min.) | 0.053in |
| Recess Depth (Max.) | 0.071in |
| Head Height (Max.) | 0.080in |
| Nominal Diameter | 0.112in |
| Head Radius (Min.) | 0.010in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Height (Min.) | 0.070in |
| Additional Industry Cross Reference | 90935A131 |
