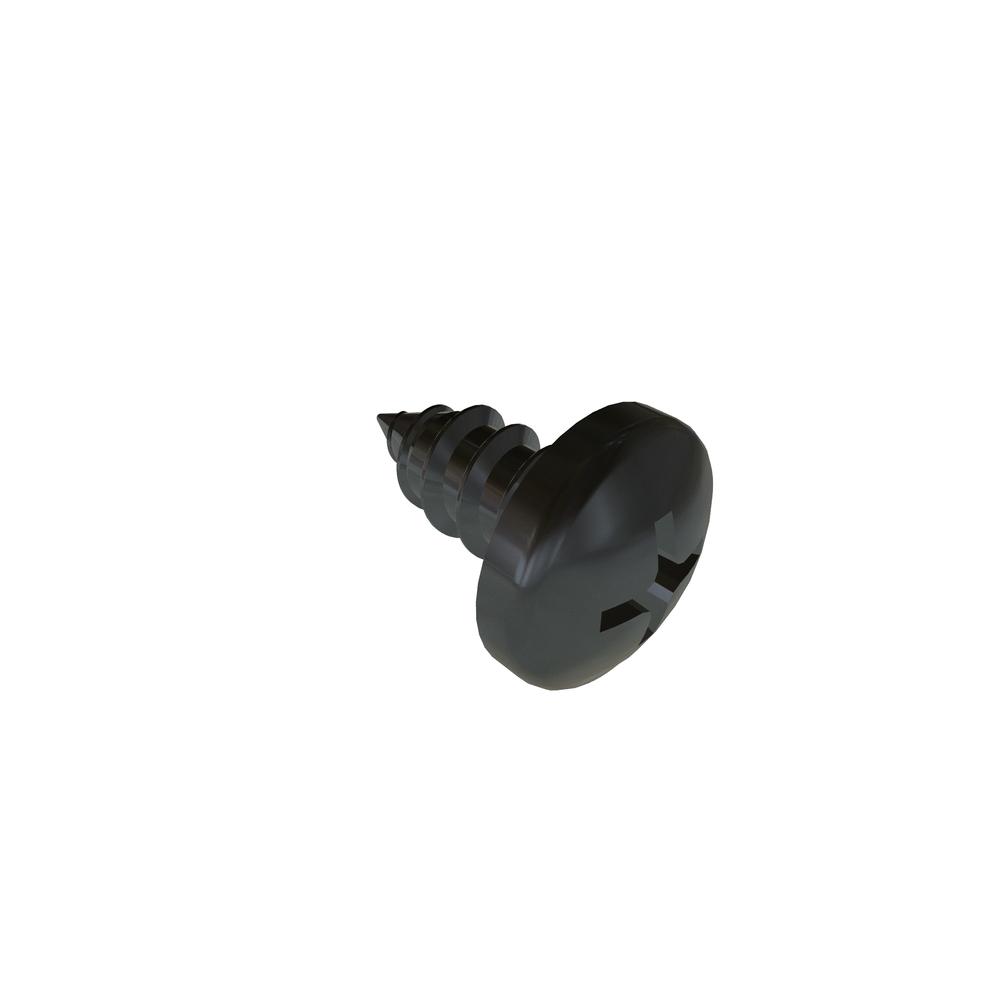

4 X 1/4 PHIL PAN T-AB STL ZN CR3
4N25PPAZR
| Item Id | 4N25PPAZR |
| Description | 4-24 X 1/4 PHIL PAN TYPE-AB STL ZN CR3 |
| Alternate Codes | 080-4005, 37004-004, 4N25PPAht, 60097, 7000-0038, 780-00451, 90190A106 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 90190A106 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
| Head Radius (Min.) | 0.010in |
| Head Type | Pan |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.112in |
| Recess Depth (Max.) | 0.071in |
| Recess Depth (Min.) | 0.053in |
| Recess Diameter | 0.116in |
| RoHS | Compliant |
| Thread Size | 4-24 |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
