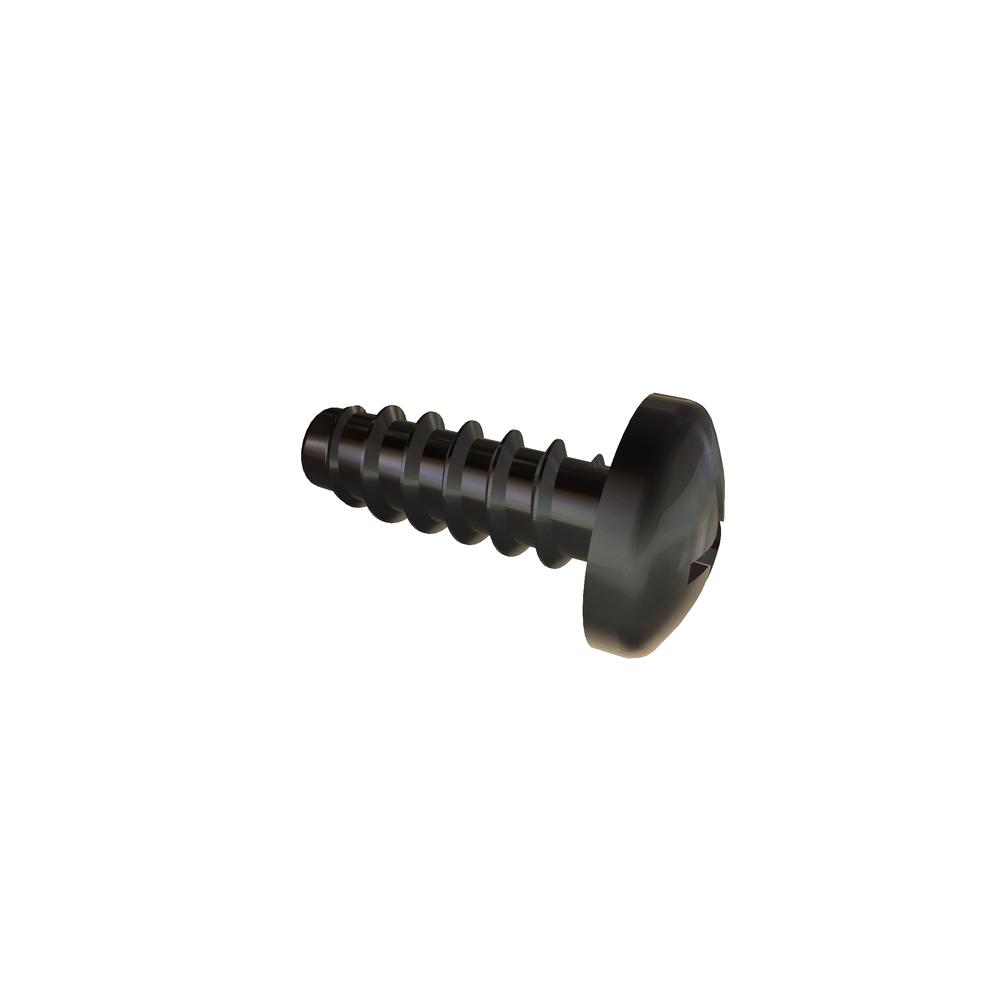

Image for reference purposes only. Actual product may vary.
4N31PPBS
4 X 5/16 PHIL PAN T-B SST RoHS
Alternate Codes: 14502, 92525A203
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.091 | $0.056 | $0.041 | $0.031 | $0.029 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.112in |
| Thread Size | 4-24 |
| Finish | Plain |
| Recess Width | 0.019in |
| Recess Diameter | 0.116in |
| Recess Depth | 0.069in |
| Drive Type | Phillips |
| Head Type | Pan Head |
| Material | Stainless Steel |
| Units | Inch |
| Drive Size | 1 |
| Head Radius (Min.) | 0.010in |
| Brand | VARIED |
| Additional Industry Cross Reference | 92525A203 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.4 |
| Head Diameter (Max.) | 0.219in |
| Head Diameter (Min.) | 0.205in |
| Head Height (Max.) | 0.080in |
| Head Height (Min.) | 0.070in |
