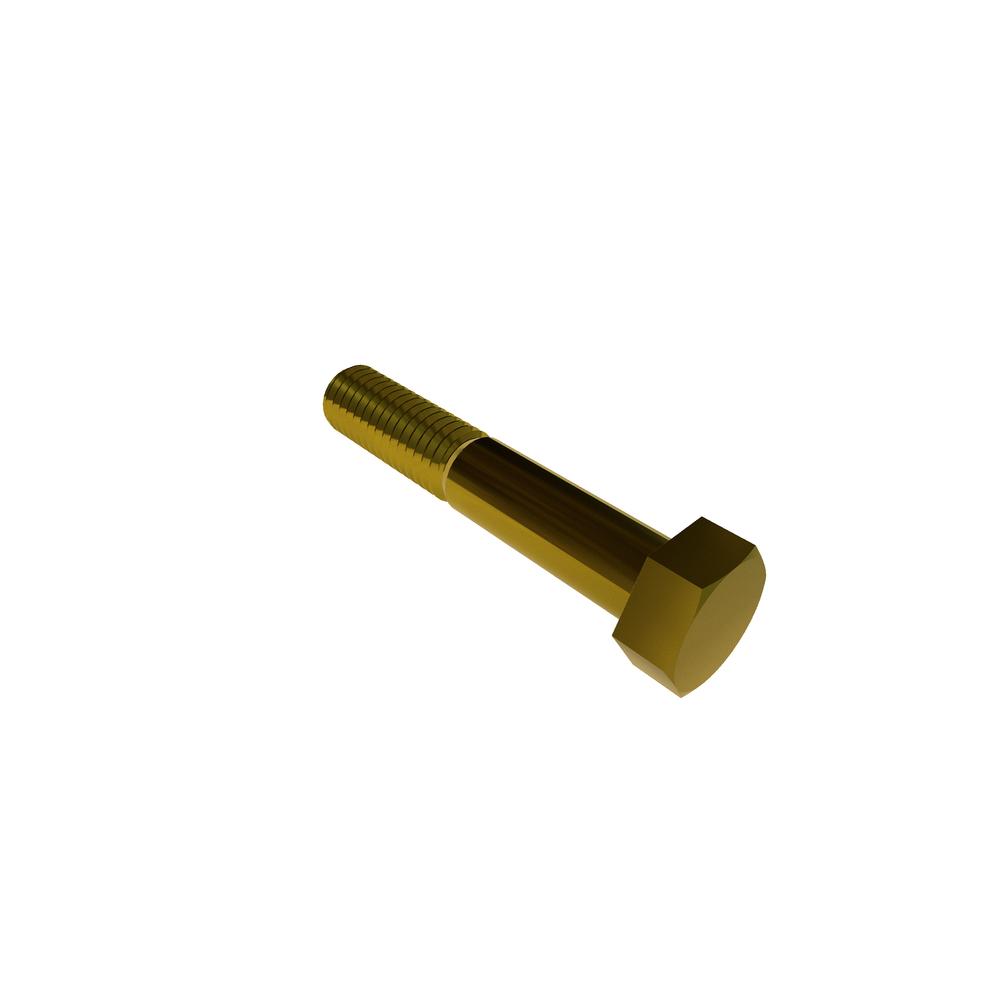

Image for reference purposes only. Actual product may vary.
50C275HHD8Y-NONROHS
1/2-13 X 2 3/4 HX HD ZN CR3 YLW GR 8
Alternate Codes: 50C275HHD8/Y
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.481 | $0.943 | $0.865 | $0.798 | $0.673 | Larger Quantities |
In Stock
Maximum stock already in cart
| Meets (Standard) | ASME B18.2.1 |
| Length | 2.75in |
| Thread Size | 1/2-13 |
| Head Height (Min.) | 0.302in |
| Body Diameter (Max.) | 0.515in |
| Head Height (Max.) | 0.364in |
| Additional Industry Cross Reference | 91257A723 |
| Body Diameter (Min.) | 0.482in |
| Nominal Thread Size | 0.500in |
| Width Across Flat (Min.) | 0.725in |
| Thread Type | Unified Coarse Thread (UNC) |
| Material | Alloy Steel |
| Width Across Flat (Max.) | 0.750in |
| Finish | Zinc Yellow |
| Head Type | Hex |
| Grade | 8 |
| Brand | VARIED |
| Units | Inch |
