1/2-13 X 4 HX HD GR 5 ZN CR3
50C400HHD5R
| Item Id | 50C400HHD5R |

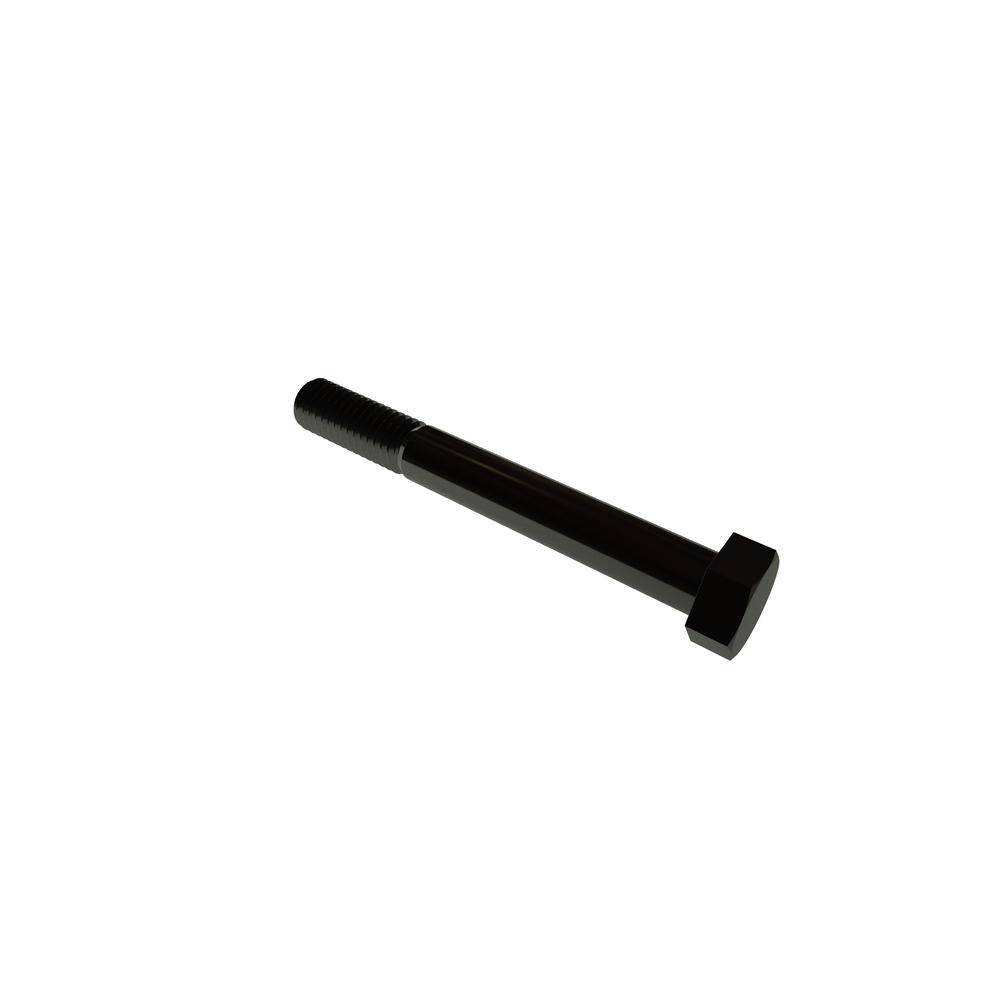

| Description | 1/2-13 X 4 HEX HD GR5 ZN RoHS |
| Alternate Codes | 18-2604-64 |
| Extended Description | 1/2-13 X 4 HEX Head Grade 5 steel Zinc plate |
| Packaging | EA |
| Additional Industry Cross Reference | 92865A728 |
| Body Diameter (Max.) | 0.515in |
| Body Diameter (Min.) | 0.482in |
| Brand | VARIED |
| Finish | Zinc Clear |
| Grade | 5 |
| Head Height (Max.) | 0.364in |
| Head Height (Min.) | 0.302in |
| Head Type | Hex |
| Length | 4.00in |
| Material | Steel |
| Meets (Standard) | ASME B18.2.1 |
| Nominal Thread Size | 0.500in |
| RoHS | Compliant |
| Thread Size | 1/2-13 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Width Across Flat (Max.) | 0.750in |
| Width Across Flat (Min.) | 0.725in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
