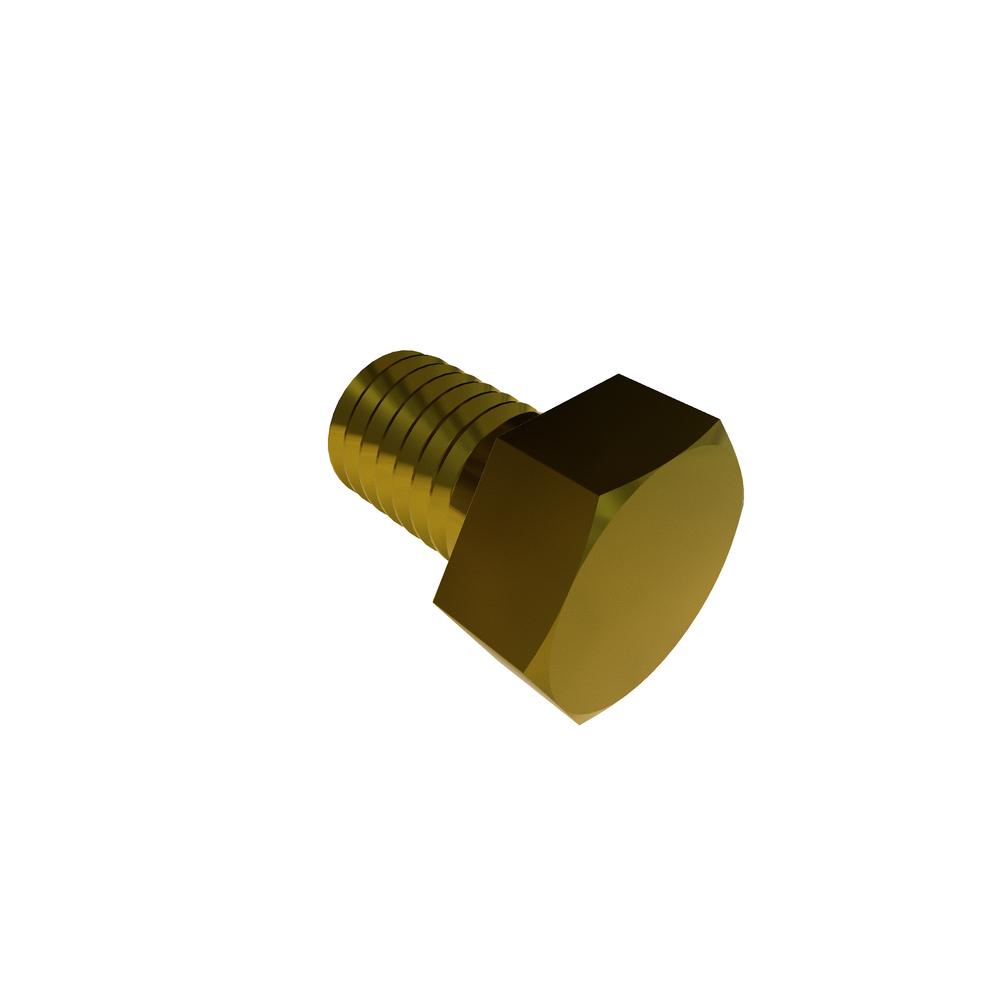

50C75HHD8YR
1/2-13 X 3/4 HX HD GR 8 ZN YLW
Alternate Codes: 50C75HHD8/Y, 50C75HHD8Y, 50C75HHD8YR-NONROHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $2.042 | $1.570 | $1.276 | $1.135 | $1.021 | Larger Quantities |
In Stock
| Thread Size | 1/2-13 |
| Material | Alloy Steel |
| Finish | Zinc Yellow |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.482in |
| Nominal Thread Size | 0.500in |
| Grade | 8 |
| Brand | VARIED |
| Additional Industry Cross Reference | 92620A709 |
| Length | 0.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.515in |
| Head Height (Max.) | 0.364in |
| Head Height (Min.) | 0.302in |
| Width Across Flat (Max.) | 0.750in |
| Width Across Flat (Min.) | 0.725in |
