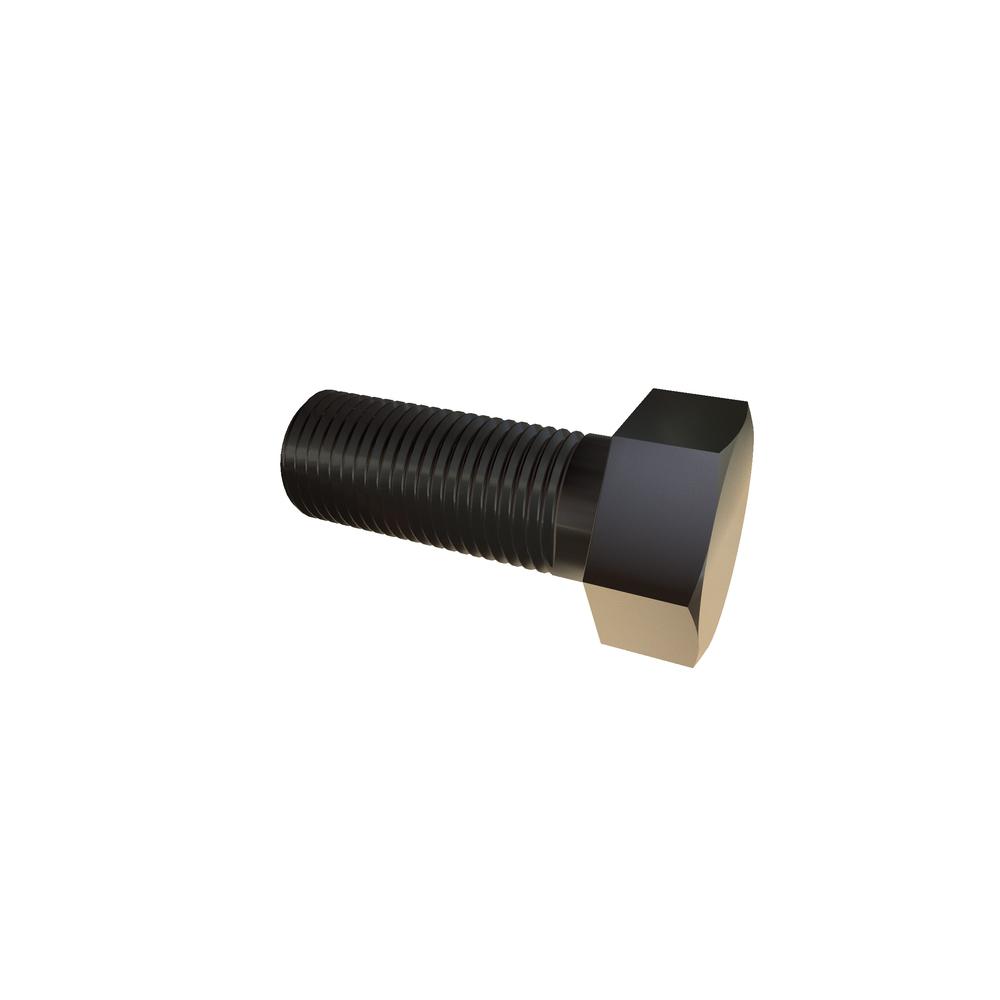

50F125HHD3
1/2-20 X 1 1/4 HX HD 316 SST RoHS
Alternate Codes: N/A
1/2-20 X 1 1/4 Hex Head 316 Stainless Steel RoHS3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 1/2-20 |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.482in |
| Nominal Thread Size | 0.500in |
| Grade | Other |
| Brand | VARIED |
| Additional Industry Cross Reference | 93190A382 |
| Length | 1.25in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.515in |
| Head Height (Max.) | 0.364in |
| Head Height (Min.) | 0.302in |
| Width Across Flat (Max.) | 0.750in |
| Width Across Flat (Min.) | 0.725in |
