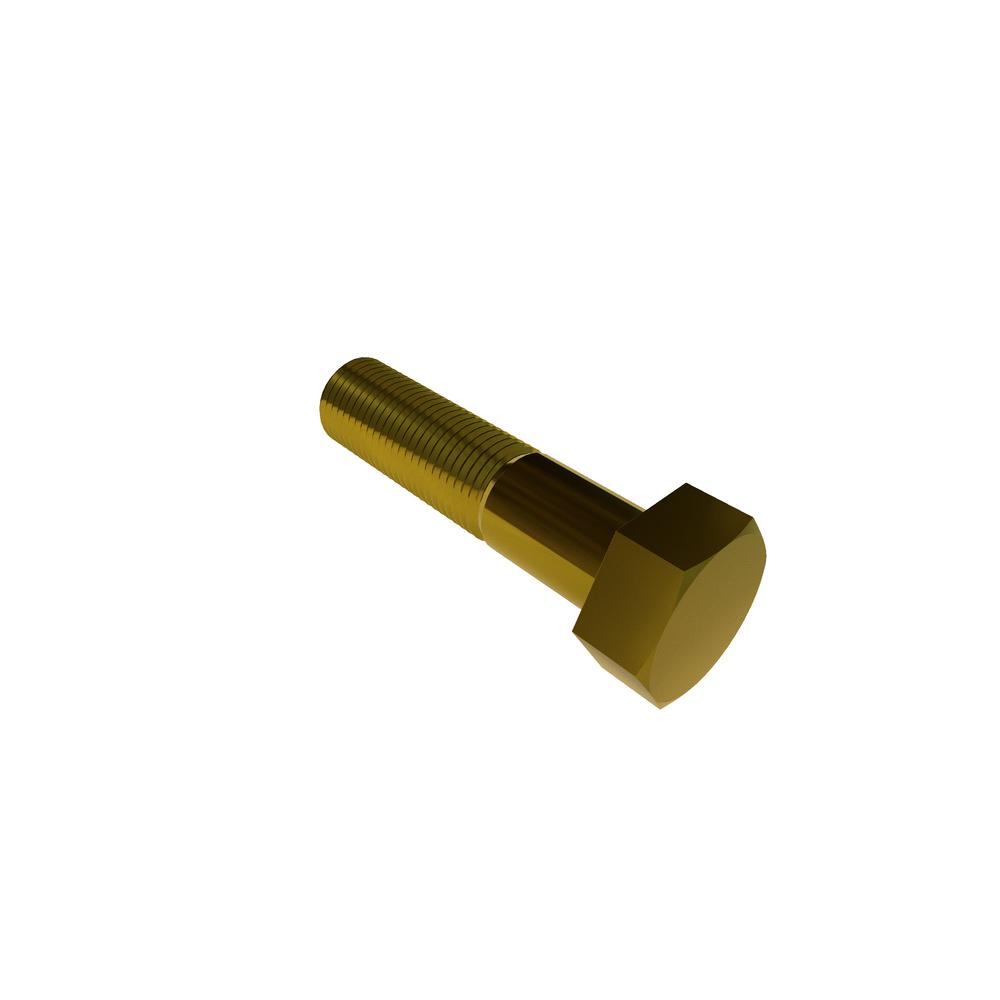

1/2-20 X 2 HX HD GR8 ZN YLW CR3
50F200HHD8Y-NONROHS
| Item Id | 50F200HHD8Y-NONROHS |
| Description | 1/2-20 X 2 HEX HD GR8 YLW ZN NonRoHS |
| Alternate Codes | 50F200HHD8/Y, 50F200HHD8Y |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91257A748 |
| Body Diameter (Max.) | 0.515in |
| Body Diameter (Min.) | 0.482in |
| Brand | VARIED |
| Finish | Zinc Yellow |
| Grade | 8 |
| Head Height (Max.) | 0.364in |
| Head Height (Min.) | 0.302in |
| Head Type | Hex |
| Length | 2.00in |
| Material | Alloy Steel |
| Meets (Standard) | ASME B18.2.1 |
| Nominal Thread Size | 0.500in |
| Thread Size | 1/2-20 |
| Thread Type | Unified Fine Thread (UNF) |
| Units | Inch |
| Width Across Flat (Max.) | 0.750in |
| Width Across Flat (Min.) | 0.725in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
