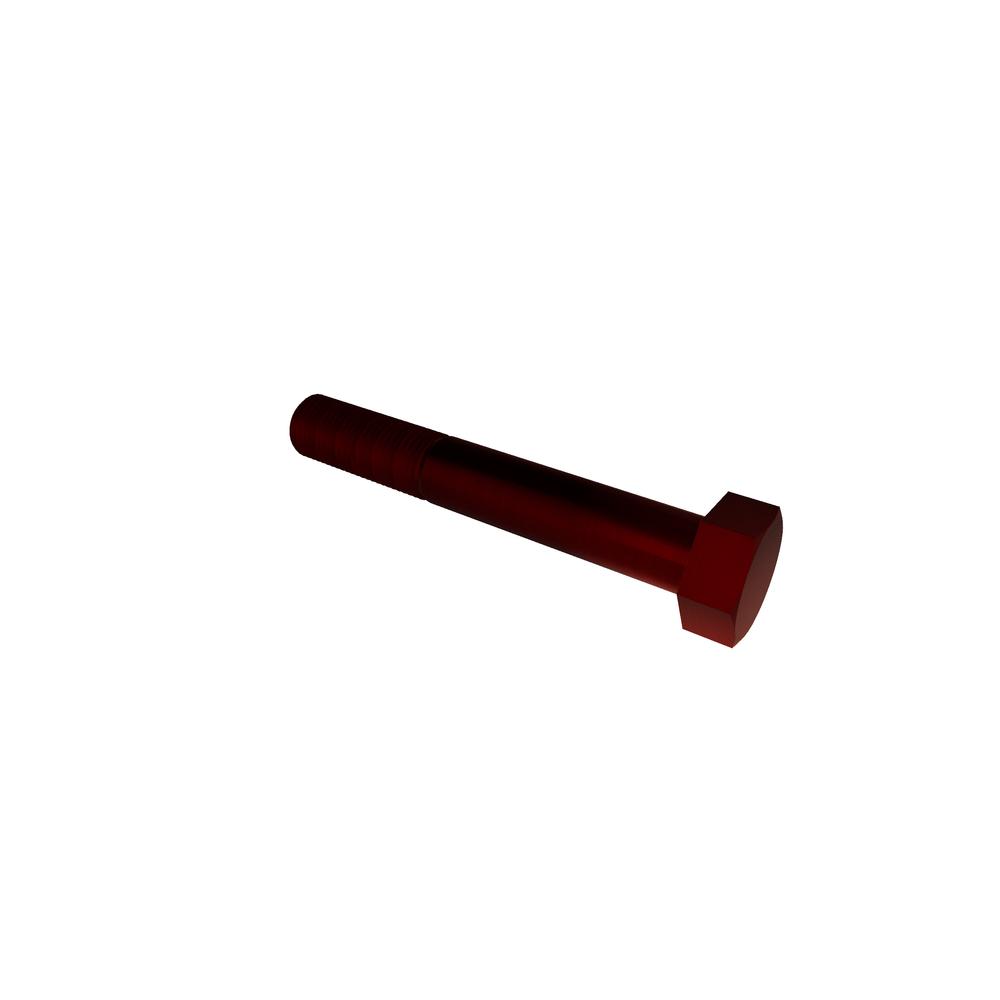

Image for reference purposes only. Actual product may vary.
50F325HHD8P
1/2-13 X 3 1/4 HX HD GR 8 PLN
Alternate Codes: N/A
1/2-20 X 3 1/4 Hex Head Grade 8 Steel Plain RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Meets (Standard) | ASME B18.2.1 |
| Length | 3.25in |
| Thread Size | 1/2-20 |
| Head Height (Min.) | 0.302in |
| Body Diameter (Max.) | 0.515in |
| Head Height (Max.) | 0.364in |
| Body Diameter (Min.) | 0.482in |
| Nominal Thread Size | 0.500in |
| Width Across Flat (Min.) | 0.725in |
| Thread Type | Unified Fine Thread (UNF) |
| Material | Alloy Steel |
| Width Across Flat (Max.) | 0.750in |
| Finish | Plain |
| Head Type | Hex |
| Grade | 8 |
| Brand | VARIED |
| Units | Inch |
