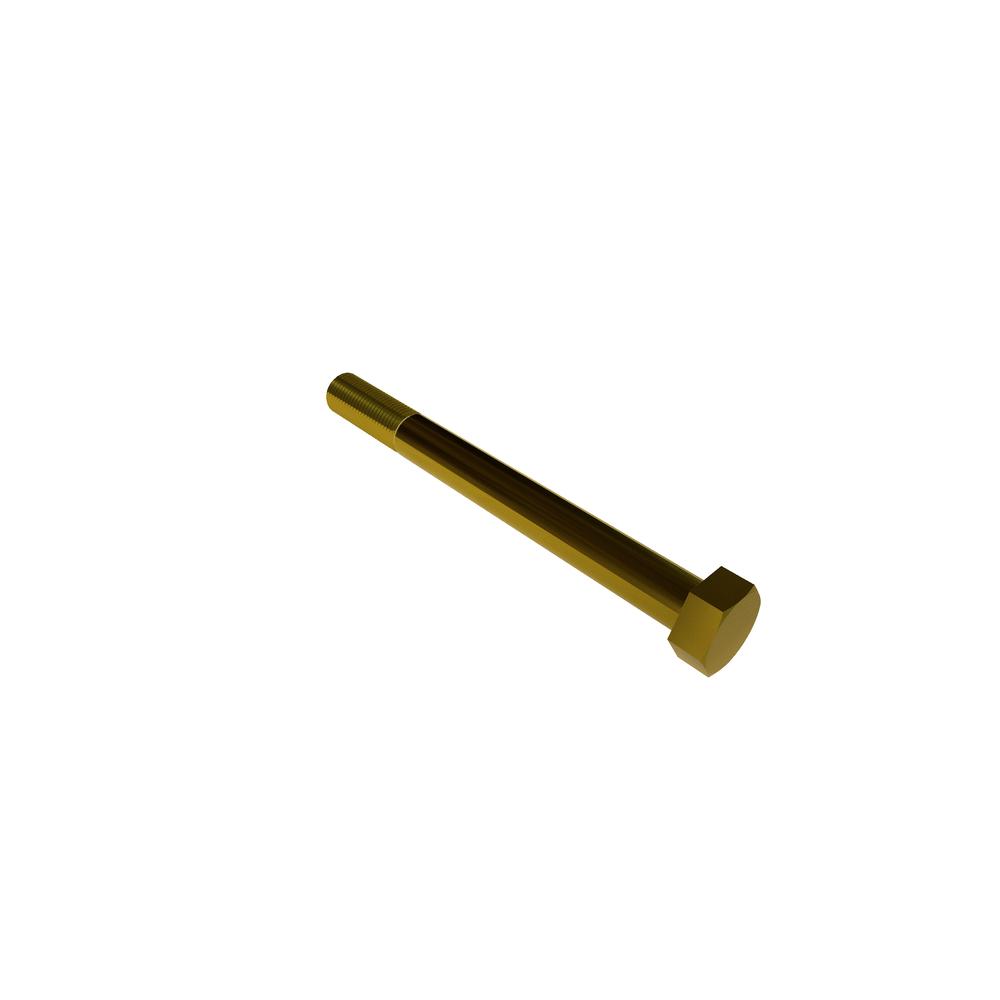

50F500HHD8Y-NONROHS
1/2-20 X 5 HX HD GR 8 ZN YLW
Alternate Codes: 50F500HHD8/Y, 50F500HHD8Y
Pricing per Unit
| 1-49 pcs |
|---|
| $3.198 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/2-20 |
| Material | Alloy Steel |
| Finish | Zinc Yellow |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.482in |
| Nominal Thread Size | 0.500in |
| Grade | 8 |
| Brand | VARIED |
| Additional Industry Cross Reference | 91257A755 |
| Length | 5.00in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.515in |
| Head Height (Max.) | 0.364in |
| Head Height (Min.) | 0.302in |
| Width Across Flat (Max.) | 0.750in |
| Width Across Flat (Min.) | 0.725in |
