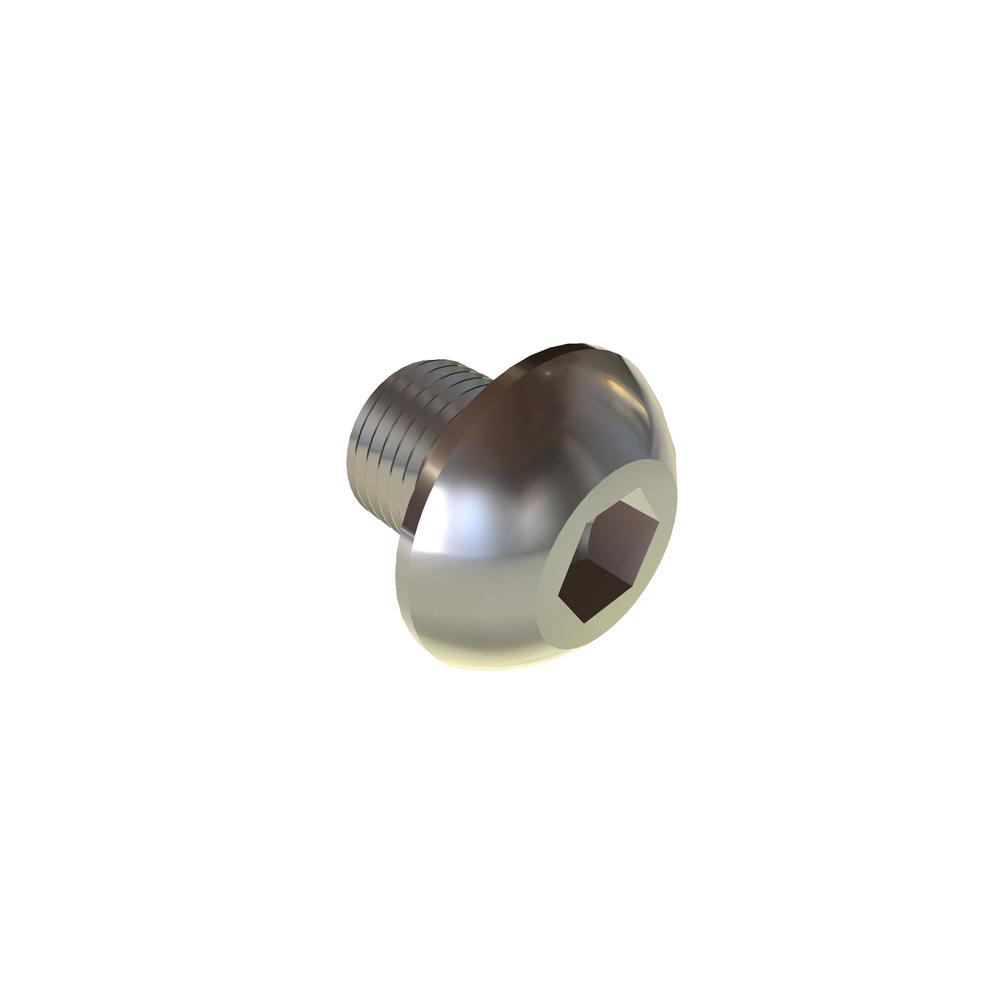

Image for reference purposes only. Actual product may vary.
50F50BHCS
1/2-20 X 1/2 BUT SOC SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $8.554 | $7.142 | $6.365 | $5.760 | $5.530 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.500in |
| Thread Size | 1/2-20 |
| Finish | Plain |
| Material | Stainless Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 0.265in |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Fillet Transition Diameter (Min.) | 0.540in |
| Fillet Transition Diameter (Max.) | 0.560in |
| Head Side Height (Ref.) | 0.046in |
| Key Engagement | 0.175in |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.875in |
| Head Diameter (Min.) | 0.851in |
| Head Height (Min.) | 0.245in |
| Hex Socket Size | 0.313in |
