Image for reference purposes only. Actual product may vary.

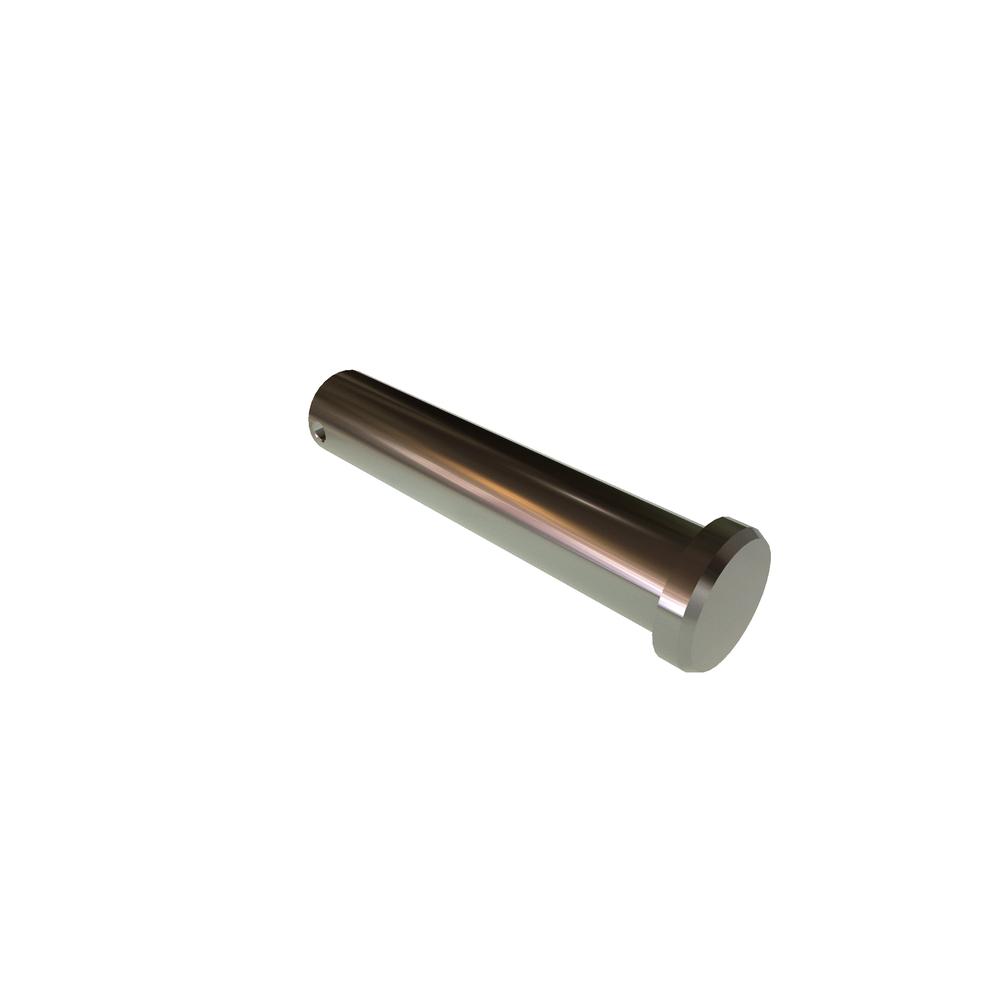

50R250CLES
1/2 X 1 1/2 CLEVIS PIN SST
Alternate Codes: 92390A385
Pricing per Unit
| 1-24 pcs |
|---|
| $4.581 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Finish | Plain |
| Diameter | 1/2in |
| Head to Center of Hole Length (Min.) | 1.706in |
| Head to Center of Hole (Max.) | 1.726in |
| Pin Length | 1 1/2in |
| Brand | VARIED |
| Total Shank Diameter (Max.) | 0.496in |
| Usable Length | 1.281in |
| Material | Stainless Steel |
| Units | Inch |
| Nominal Diameter | 49 |
| Total Shank Diameter (Min.) | 0.491in |
| Hole Diameter (Max.) | 0.151in |
| Hole Diameter (Min.) | 0.136in |
| Point Diameter (Min.) | 0.430in |
| Point Diameter (Max.) | 0.440in |
| End to Center Length (Ref.) | 0.15in |
| Additional Industry Cross Reference | 92390A385 |
| Head Diameter (Max.) | 0.630in |
| Head Diameter (Min.) | 0.610in |
| Head Height (Max.) | 0.160in |
| Head Height (Min.) | 0.14in |
| Head Chamfer | 0.04in |
