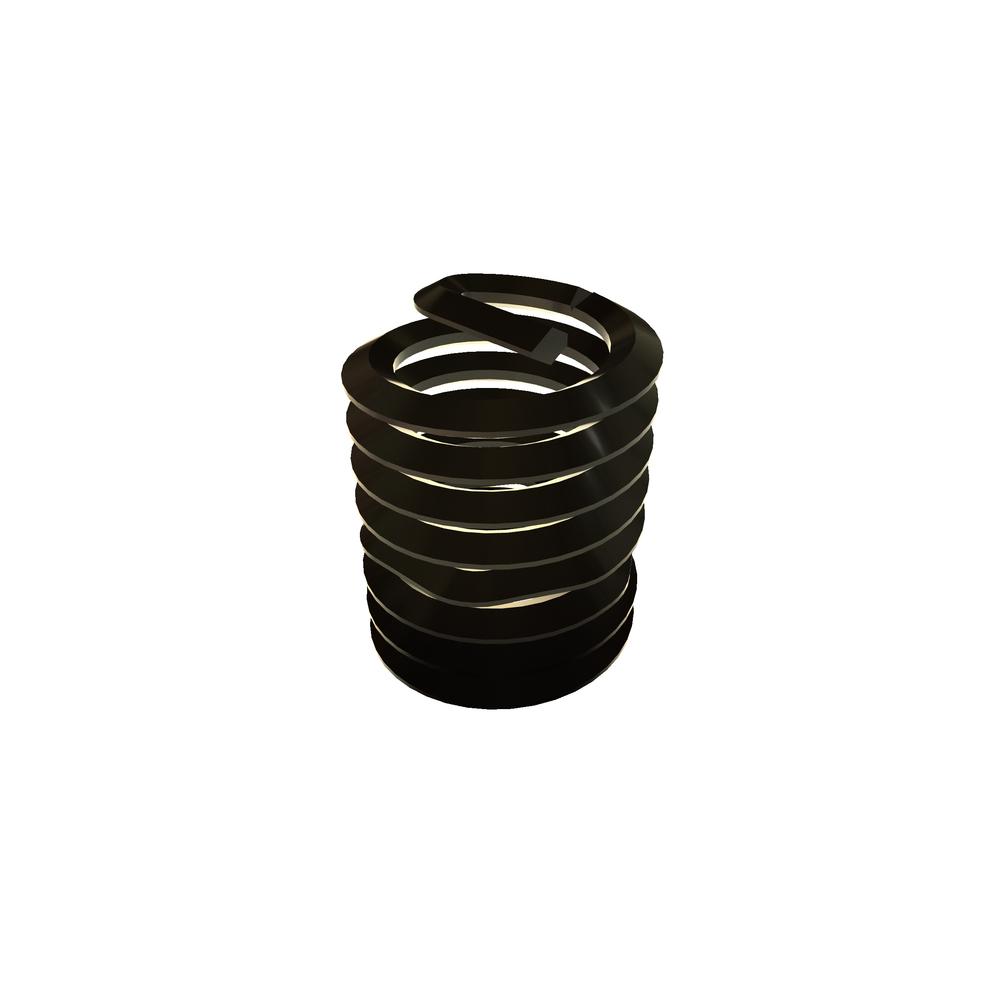

5255-8CN080
M8 -1.0 LKG HELI INS RoHS
Alternate Codes: MA3329-108
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|---|
| $4.152 | $3.321 | $2.555 | $2.244 | $2.025 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M8x1 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Fine |
| Nominal Diameter | 8.00 mm |
| Free Coil Diameter (Min.) | 9.70 mm |
| Free Coil Diameter (Max.) | 10.25 mm |
| Insert Type | Standard Wire Inserts |
| Number of Coils | 5 7/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 2 |
| Number of Grip Coils | 2 |
| Number of Coils From End Insert | 2 15/16 |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 90296A314 |
