5806-53-2-C1
3 WAVE WASHER STL CAD NONRoHS
Alternate Codes: N/A

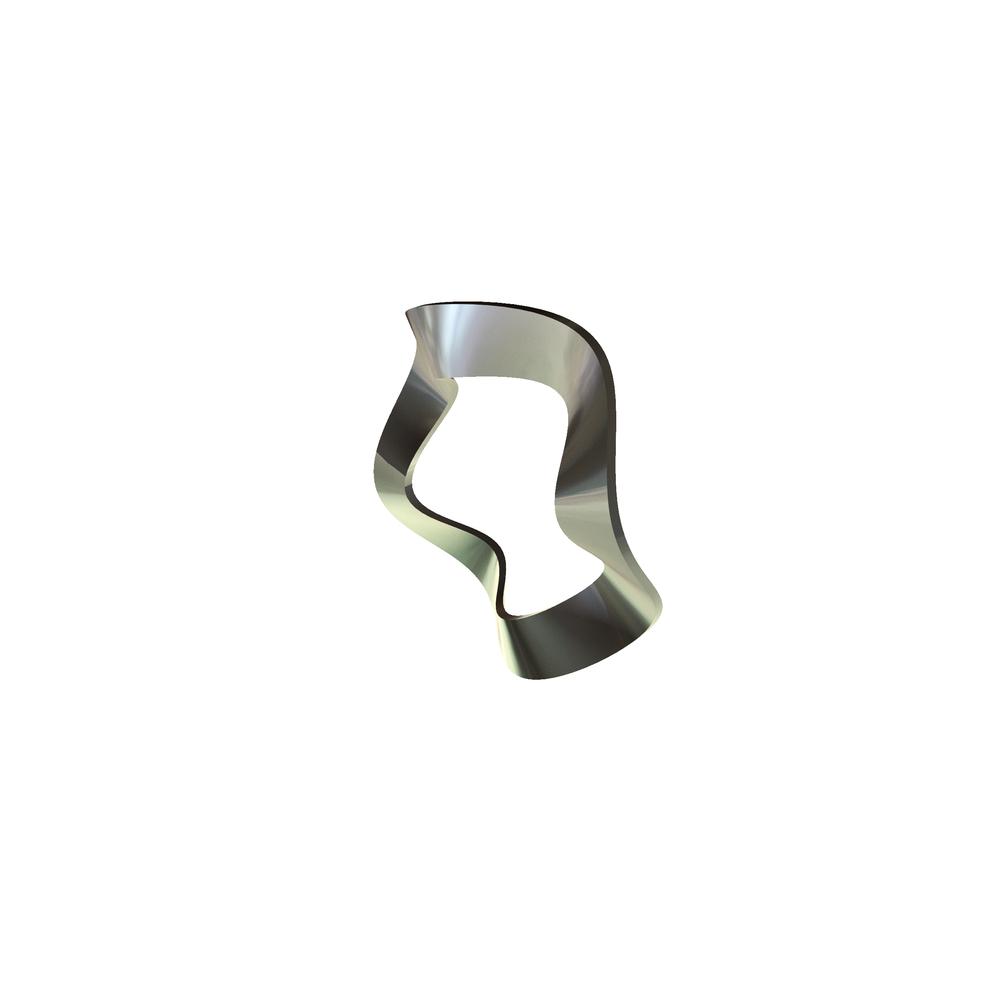

.200 ID .307 OD .008 THICK WAVE Washer Steel Cadmium Clear Plated Non-RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.718 | $0.395 | $0.329 | $0.282 | $0.233 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Material | Steel |
| Finish | Cadmium Clear |
| Units | Inch |
| Spring Rate-lbs/IN | 1782 lbs/in |
| OD | 133 |
| ID | 0.200in |
| Maximum Load (lbs.) | 9.925 lbs |
| Brand | SEASTROM |
| Type | Wave Washer |
| Head Height (Max.) | 0.060in |
| Thickness (Max.) | 0.008in |
| No of Waves | 3 |
| Maximum Deflection (in) | 0.006in |
