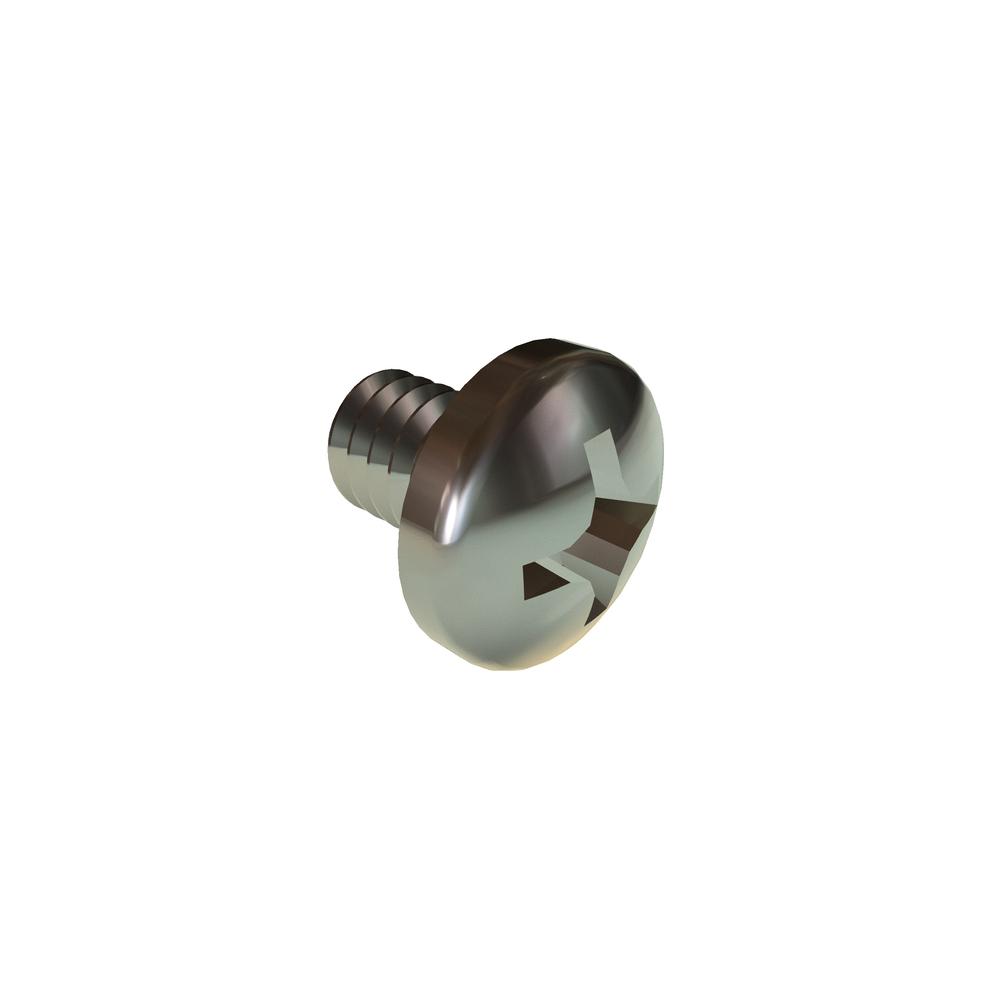

5C18PPMS
5-40 X 3/16 PH PAN SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-249 pcs |
|---|
| $0.152 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 5-40 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.125in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.152in |
| Head Radius (Min.) | 0.015in |
| Recess Depth (Min.) | 0.046in |
| Recess Depth (Max.) | 0.072in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91772A123 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.245in |
| Head Diameter (Min.) | 0.231in |
| Head Height (Max.) | 0.089in |
| Head Height (Min.) | 0.079in |
