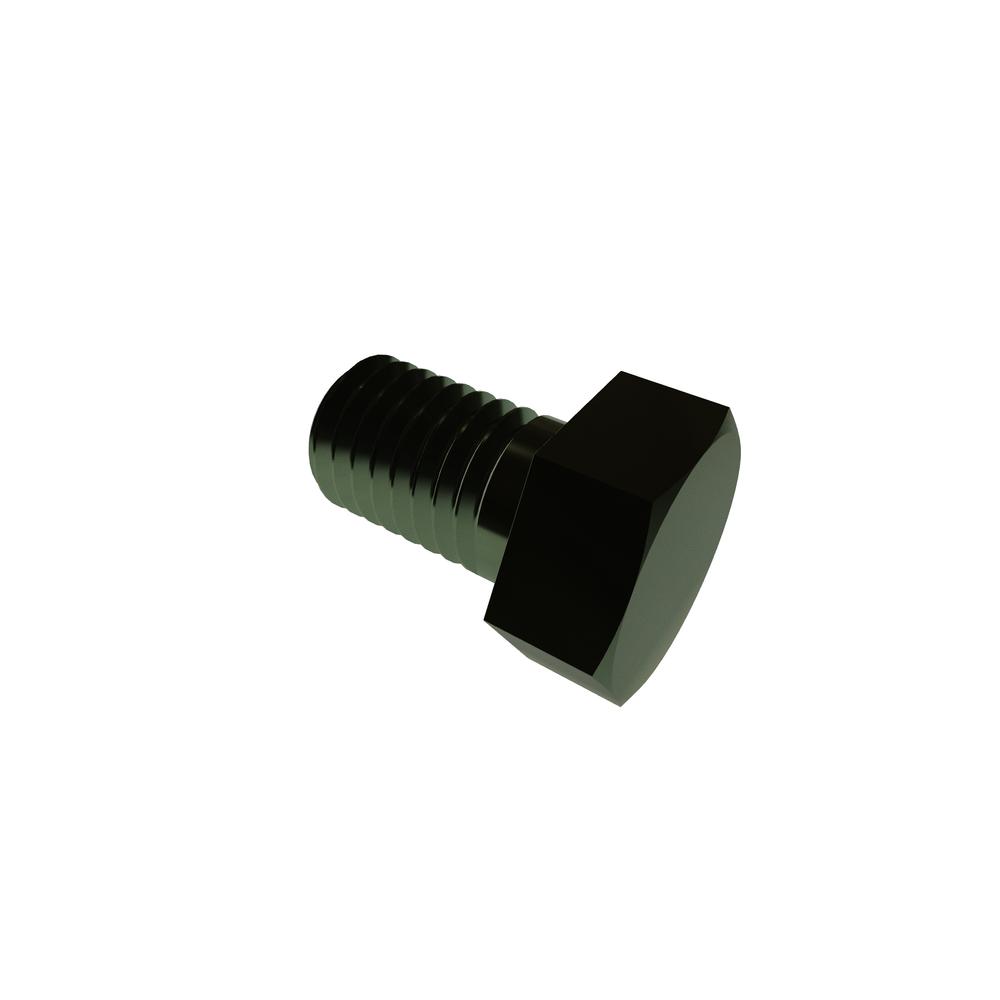

5/8-11 X 1 HX HD GR 5 ZN CR3
62C100HHD5R
| Item Id | 62C100HHD5R |
| Description | 5/8-11 X 1 HX HD F/T GR5 ZN RoHS |
| Extended Description | 5/8-11 X 1 Hex Head Full Thread Grade 5 steel Zinc plate RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 92865A794 |
| Body Diameter (Max.) | 0.642in |
| Body Diameter (Min.) | 0.605in |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Grade | 5 |
| Head Height (Max.) | 0.444in |
| Head Height (Min.) | 0.378in |
| Head Type | Hex |
| Length | 1.00in |
| Material | Steel |
| Meets (Standard) | ASME B18.2.1 |
| Nominal Thread Size | 0.625in |
| RoHS | Compliant |
| Thread Size | 5/8-11 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Width Across Flat (Max.) | 0.938in |
| Width Across Flat (Min.) | 0.906in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
