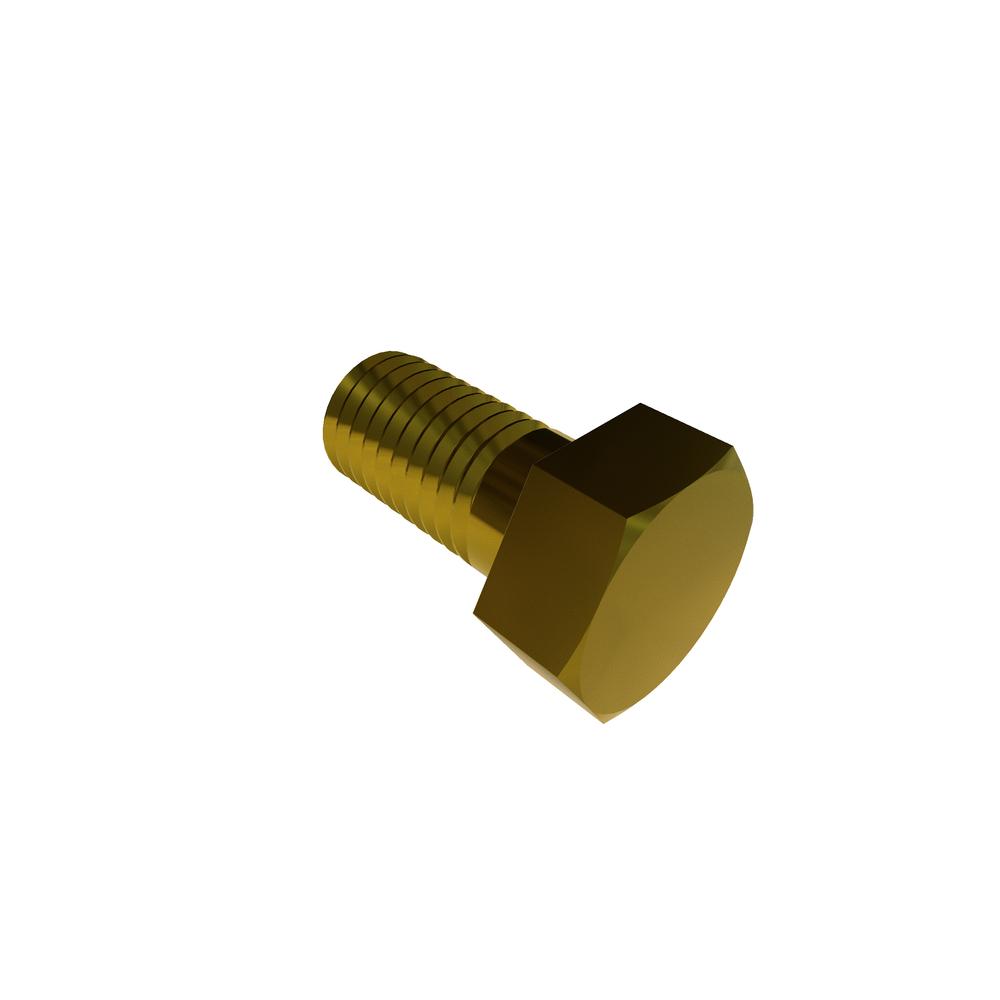

62C125HHD8YR
5/8-11 X 1 1/4 HX HD ZN CR3 YLW GR 8
Alternate Codes: 62C125HHD8/Y
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 5/8-11 |
| Material | Alloy Steel |
| Finish | Zinc Yellow |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Head Type | Hex |
| Body Diameter (Min.) | 0.605in |
| Nominal Thread Size | 0.625in |
| Grade | 8 |
| Brand | VARIED |
| Additional Industry Cross Reference | 92620A796 |
| Length | 1.25in |
| Meets (Standard) | ASME B18.2.1 |
| Body Diameter (Max.) | 0.642in |
| Head Height (Max.) | 0.444in |
| Head Height (Min.) | 0.378in |
| Width Across Flat (Max.) | 0.938in |
| Width Across Flat (Min.) | 0.906in |
